Description

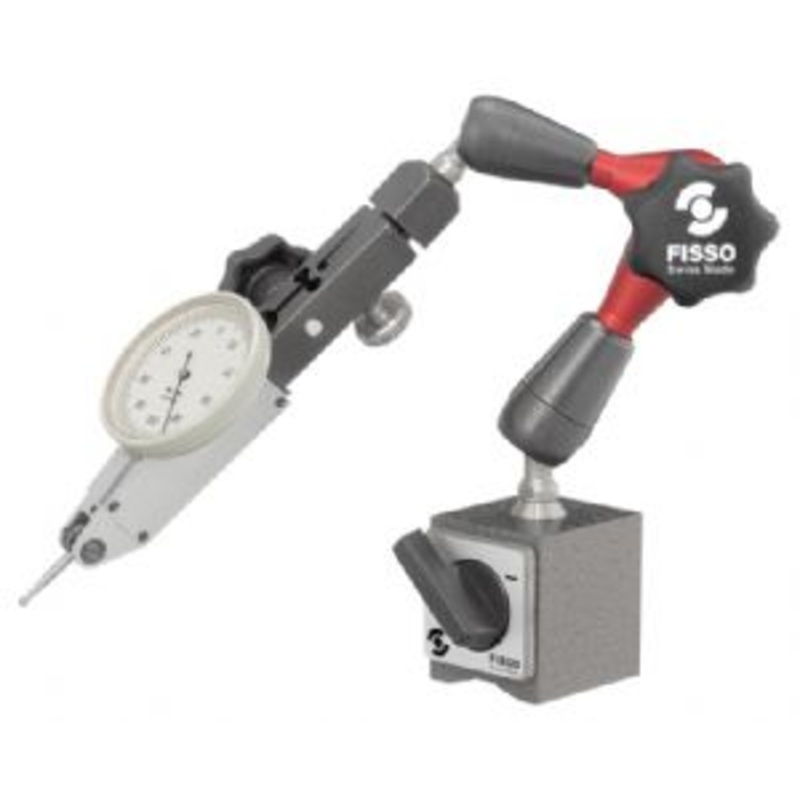

The FISSO (Swiss Made) Strato Line is the modern series with red anodized arm sections made of high-quality light alloy. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI’s.
Strato XS-13 – The smallest Strato model for use with DTI’s on machine tools, in measurement systems with limited space. Pre-tensioning cannot be set.
FISSO Ref: XS13.50
Strato Line Model: XS-13 F + S2
With Switch Magnet (M)
Overall height: 220 mm
Radius of movement: 130 mm
Base size: 34 x 30 x 35 mm
Holding strength approx. 300 N
Weight: 0.450 kg
(Excluding dial gauge or DTI instrument !)
