Description
The FISSO (Swiss Made) Base Line models are simple, practical solutions with a high degree of stability. They feature strong clamping with robust aluminium clamping jaws. An additional joint for fine adjustment as well as precise microfine adjustment (F) with a combination holder for dial gauges and probes with dovetails.

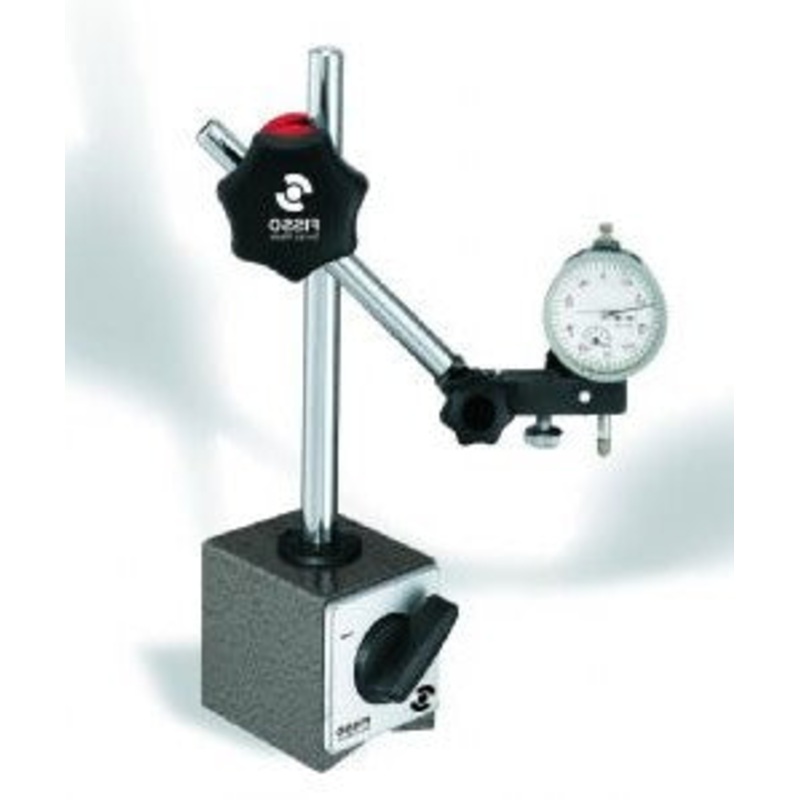

Base Line LS30 F + MThe large Classic model is well suited for large work pieces and machines. The steplessly adjustable pre-tensioning protects the instruments.
FISSO Ref: LS30.10
Base Line Model: LS30 F + M
With Switch Magnet (M)
Overall height: 367 mm
Horizontal Arm: 10 mm dia. x 106 mm Length
Vertical Arm: 12 mm dia. x 156 mm Length
Base size: 60 x 50 x 55 mm
Holding strength approx. 800 N
Weight: 1.660 kg
(Excluding dial gauge or DTI instrument !)
