Description
Articulated measuring stands Classic Line 3300-40 F + SM magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole 3/8″ Stem with 3/8″ to 8mm bushing
Delivered in individual packages, without dial gauge
Applications:
The standard Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be set.

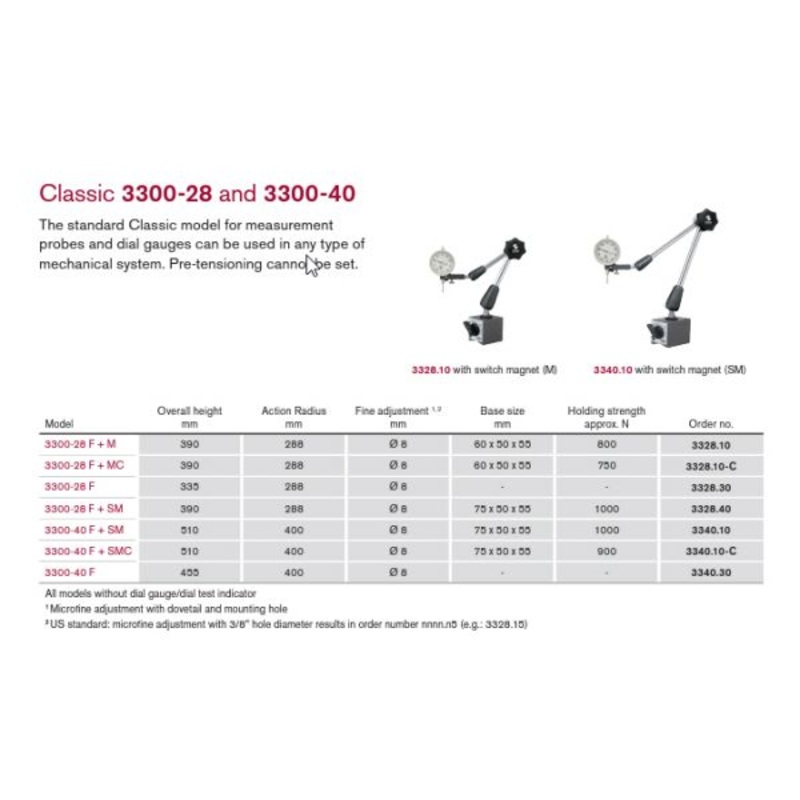

Articulated measuring stands Classic Line 3300-40 F + SM magnetic, mechanical center lock and micro-fine adjustment
Size: 400/510mm
Brand: FISSO
Manufacturer number: 3340.15
Base: switch magnet
Base dimension: 75x50x55mm
op. range/height: 400/510mm
Height: 510mm
Fine adjustment: 8mm
Adhesive force: 1000N
Weight: 2kg
FISSO Classic Line Model: 3300-40 F + SM – 3D articulated gauging arm with on off magnet, 8mm Stem……….Indicator Not supplied
