Description
Tesa design – Swiss made
Factory standard
1.1mm Scale interval
Dial: rotating dial with dial lock
0.210″ Range of indication maximum plunger travel
Material hardness full-metal dial casing.
Stainless steel fixing shank and plunger, hardened.
Adjustable tolerance marks.
M2,5 mounting thread for the measuring insert.
Mounted insert with a 3mm diameter steel ball tip
Inspection report with a declaration of conformity
Dial locking knob. 0.01″ Revolution
Part Number 01426028

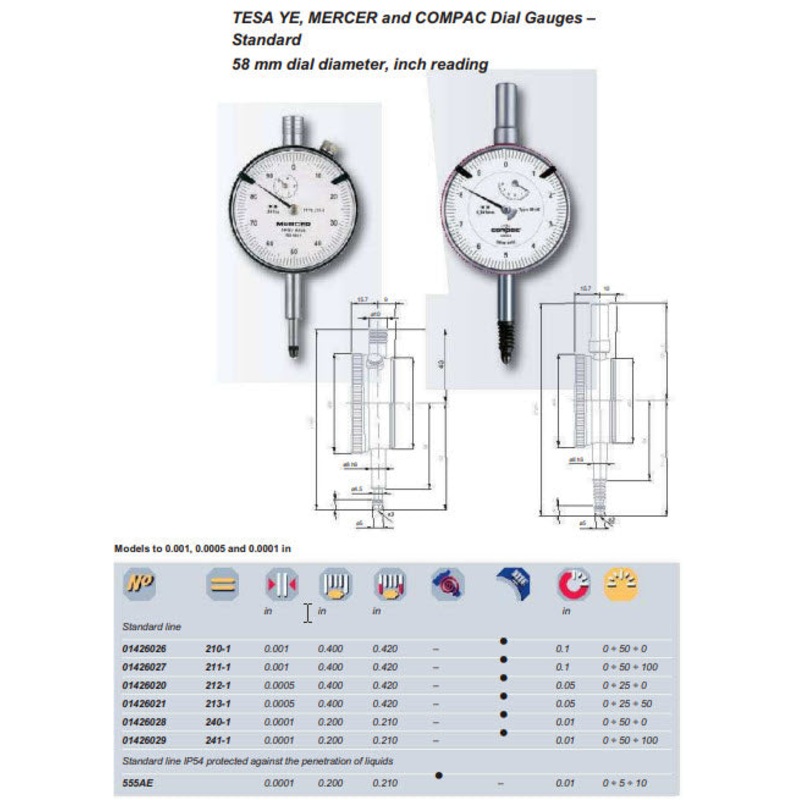

Description MERCER Dial indicator, 2.25 in dial diameter
Range 0 – 0.2″
Resolution 0.0001″
Measurement Accuracy +/-0.0005″
Reading 0-50-0
Dial Colour White
Item Diameter 2.283 inches
Stem Outside Diameter 8MM
Thread Style M2.5
ETALON,01426028 Dial gauge DIAL INDI. 240-1 FACE SIZE 58MM GRADUATION 0.0001” INCH
