Description
The standard ER collet is the most widely used clamping system in the world.
Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding. Unless specified differently all of our ER collets feature runout of 0.010 micronor less. ,ER collet sizes start atER8throughER50.

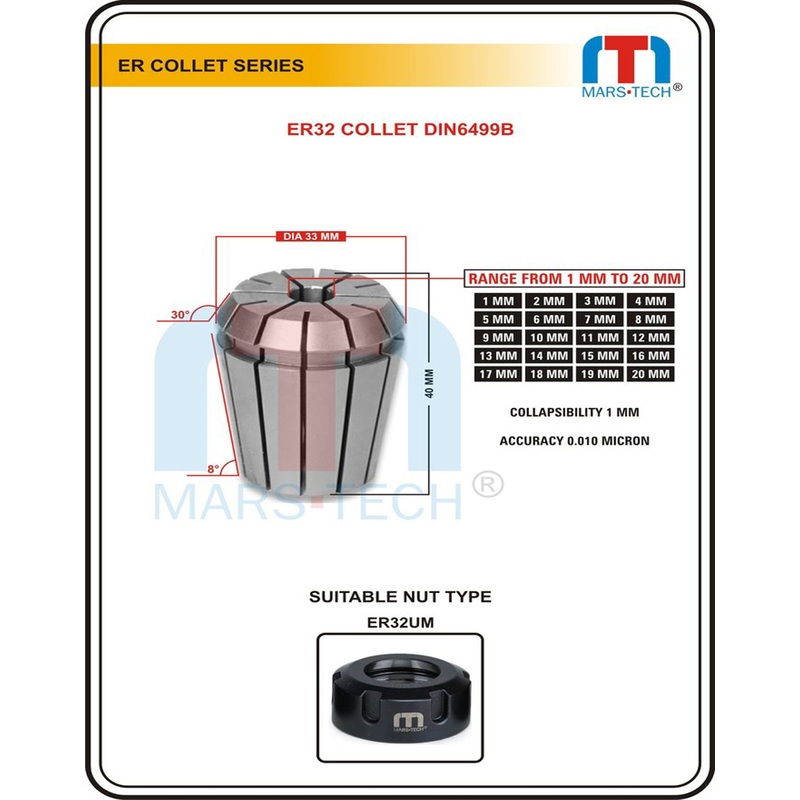

ER32 series collets have a capacity of 1mm-20mm. Each ER32 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER32-6mm can grab a round shank from 6mm diameter to 5.1mm diameter.
