Description
-

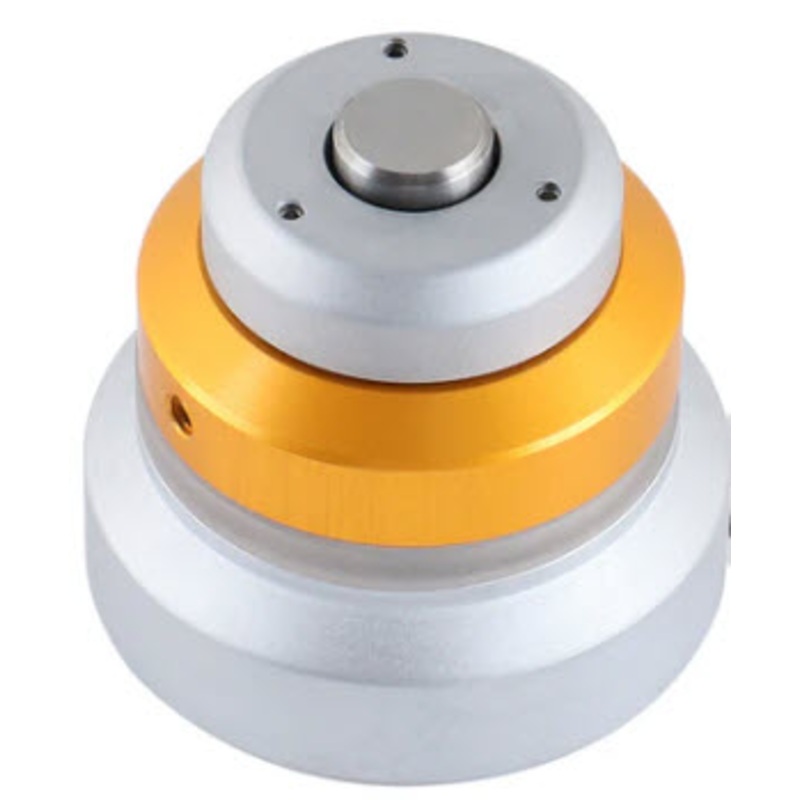

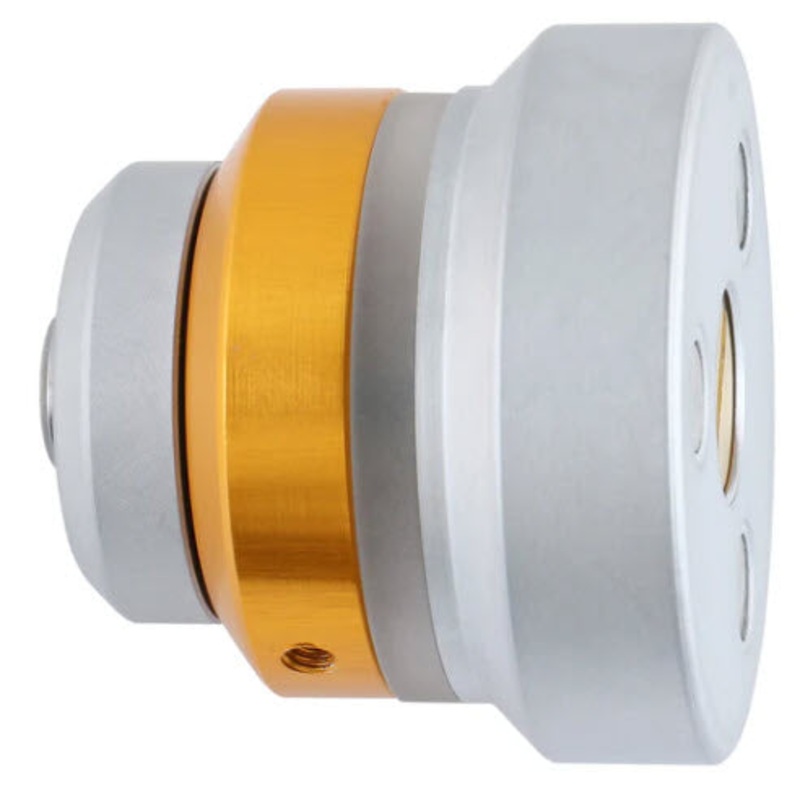

Electronic Magnetic Z Axis Setter Height
- Accuracy 0.0002″
- Adjustable Height 2″
- Magnetic base
- Battery: LR1130
- 360 degree red lamp lights up when touched
- Introduce the tool to the unit until the light is on, then draw back until light is off
- Adjust the height if needed with preset two all-in screws on the side of the unit and turn the top grey part of the unit alongside the center threaded body.
- When presetting diameter, rotate tool slowly for higher precision.
- Do not use caliper for presetting unit, only use gauge block and preset gauge.
