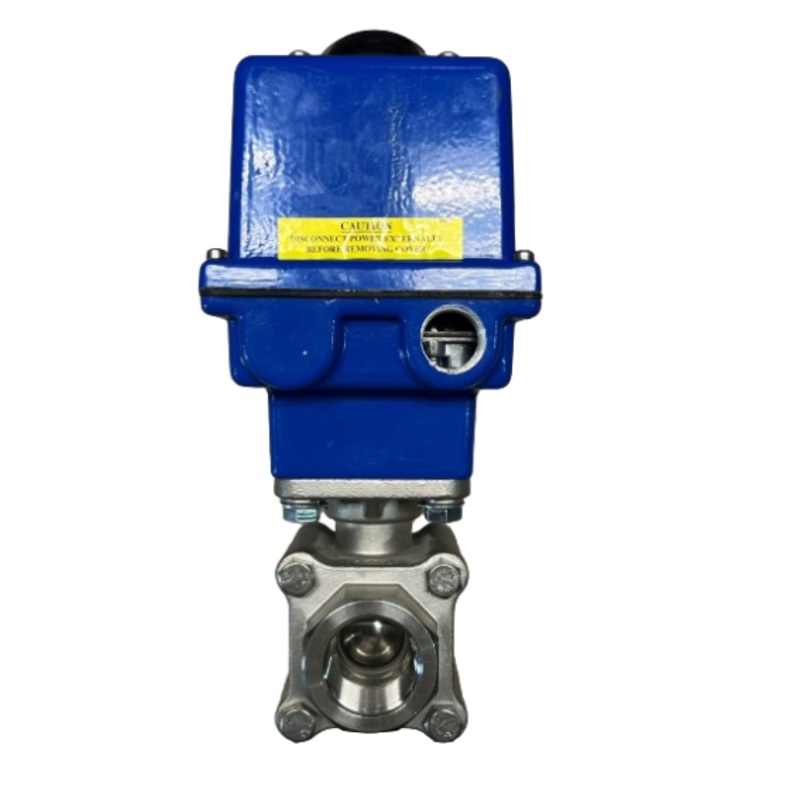

The R series ultra-compact electric rotary actuator was
designed for small ball valve and damper applications.
SPECIFICATIONS:
TORQUE 100 In-Lb (11.3 Nm)
CYCLE TIME 2.5 Sec./90 115Vac & 230Vac
2.9 Sec./90 12Vdc, 24Vdc, 24Vac motor (75%)
DUTY CYCLE 25% standard on 115Vac and 230Vac
75% standard on 12Vdc, 24Vdc and 24Vac
MOTOR Permanent split capacitor (for AC) with thermal overload protection
CURRENT RATINGS FL= Full Load, LR= Lock Rotor
