Description

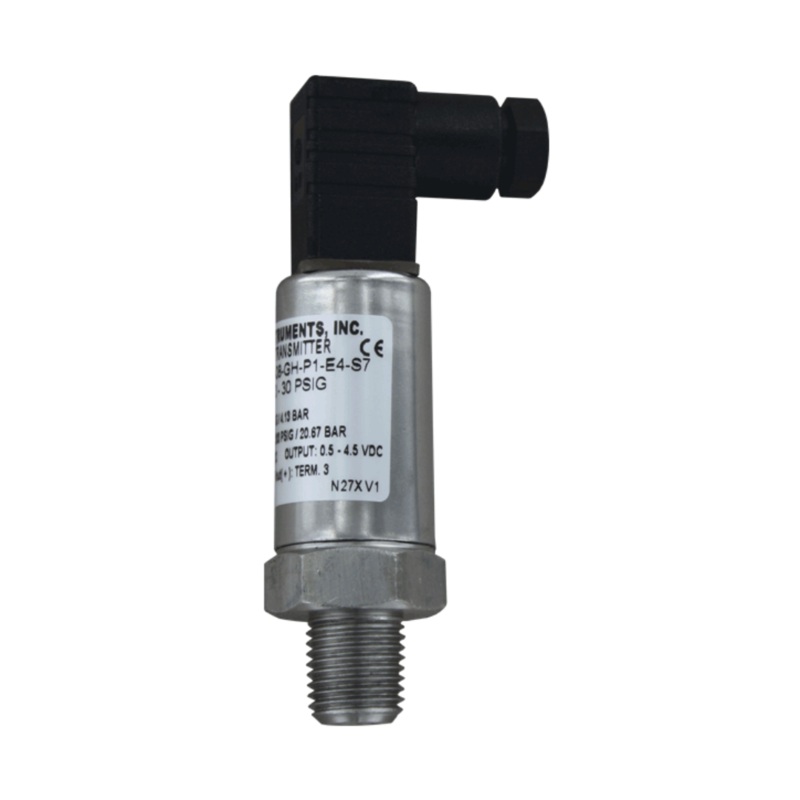

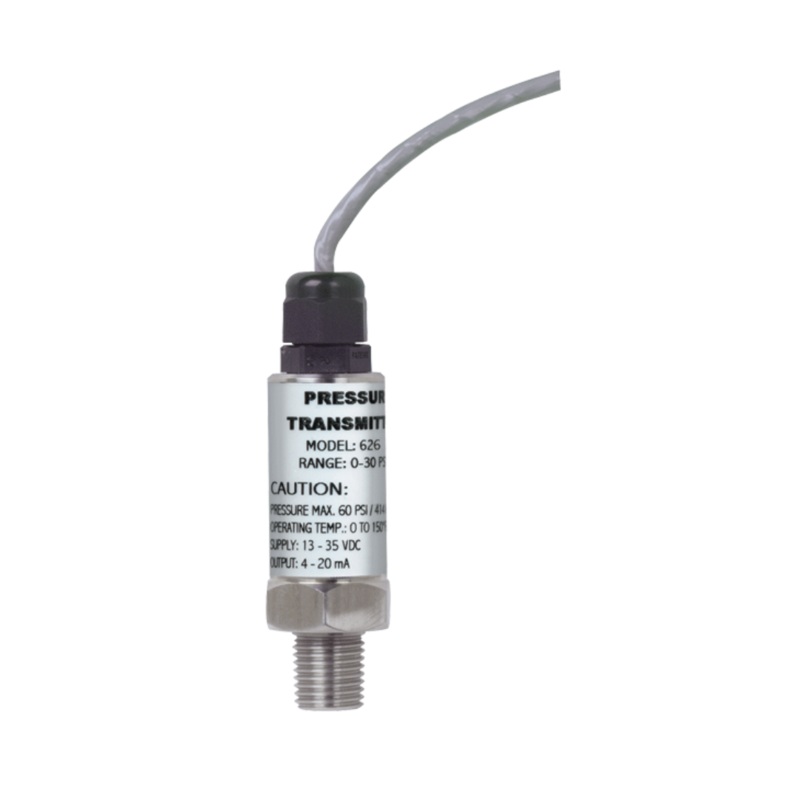

The Series 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The Series 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals.
- Robust 316 SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
- NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Part Number Explanation:
Accuracy
626 – 0.25% full scale accuracy. 628 – 1.0% full scale accuracy
Housing
GH – General Purpose Housing
Process Connection
P3 – 1/4 BSPT Male
Electrical Connection
E4 – DINPlug
Signal Output
S1 – 4-20 mA
Lead times may apply. Please contact us for stock availability.
