Description

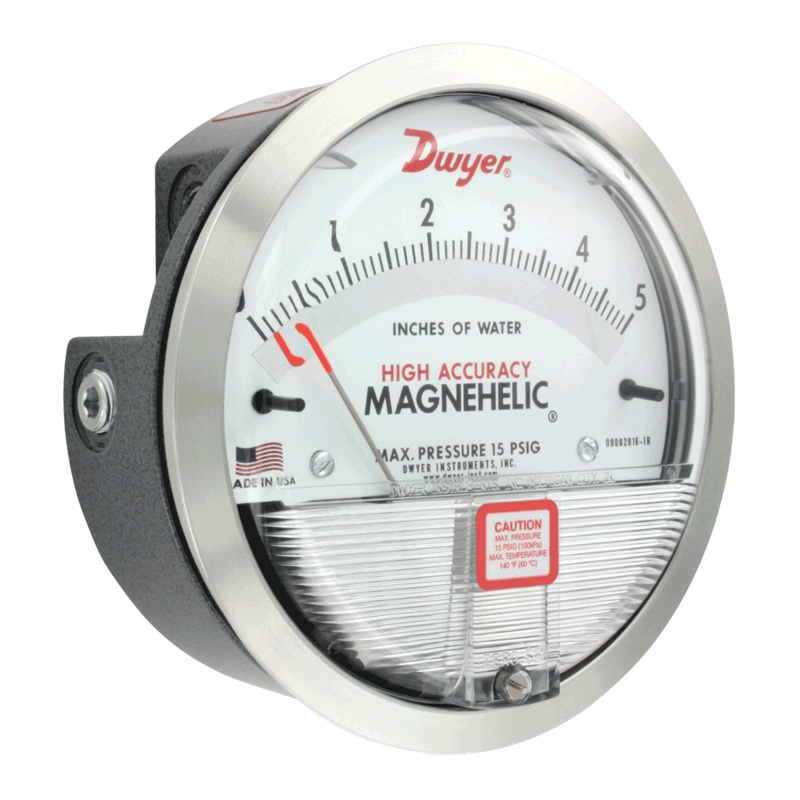

Select the SERIES 2000 Magnehelic Gauge for a versatile low differential pressure gage with a wide choice of 81 models and 27 options to choose from. Using Dwyers simple, frictionless Magnehelic gauge movement, it quickly indicates air or noncorrosive gas pressures–either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67. Select the HA High Accuracy Magnehelic gauge option for an accuracy within 1% of full scale. Also included with the HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.
PLEASE ALLOW ADDITIONAL TIME FOR BULK ORDERS OR LESS COMMON PRODUCTS.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.
FEATURES / BENEFITS:
- Easy to read gauge through undistorted plastic face permits viewing from far away
- Patented design provides quick response to pressure changes means no delay in assessing critical situations
- Durable and rugged housing and high-quality components combine to provide long-service life and minimized down-time
- High accuracy option is twice as accurate as the standard Magnehelic gauge
APPLICATIONS:
- Filter monitoring
- Air velocity with Dwyer pitot tube
- Blower vacuum monitoring
- Fan pressure indication
- Duct, room or building pressures
- Clean room positive pressure indication
Also Available:
Click to Enlarge
Documents:
- 2000 Series Catalog
- 2000 Series User’s Guide
