Description
Dwyer Mark II series molded manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work.
PLEASE ALLOW ADDITIONAL TIME FOR BULK ORDERS OR LESS COMMON PRODUCTS.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.
SPECIFICATIONS:
INCLINED/VERTICAL MODEL
- Accuracy:3% FS.
- Temperature Limits:140F (60C).
- Pressure Limits:10 psi (70 kPa).
- Weight:1.04 lb (472 g).
- Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
INCLINED MODEL
- Accuracy:3% FS.
- Temperature Limits:150F (65C).
- Pressure Limits: 15 psi (100 kPa).
- Scale Length: Approx. 8-1/4″ (21 cm).
- Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
APPLICATIONS:
- Paint booths
- Air velocity measurement
- Air filter gauge

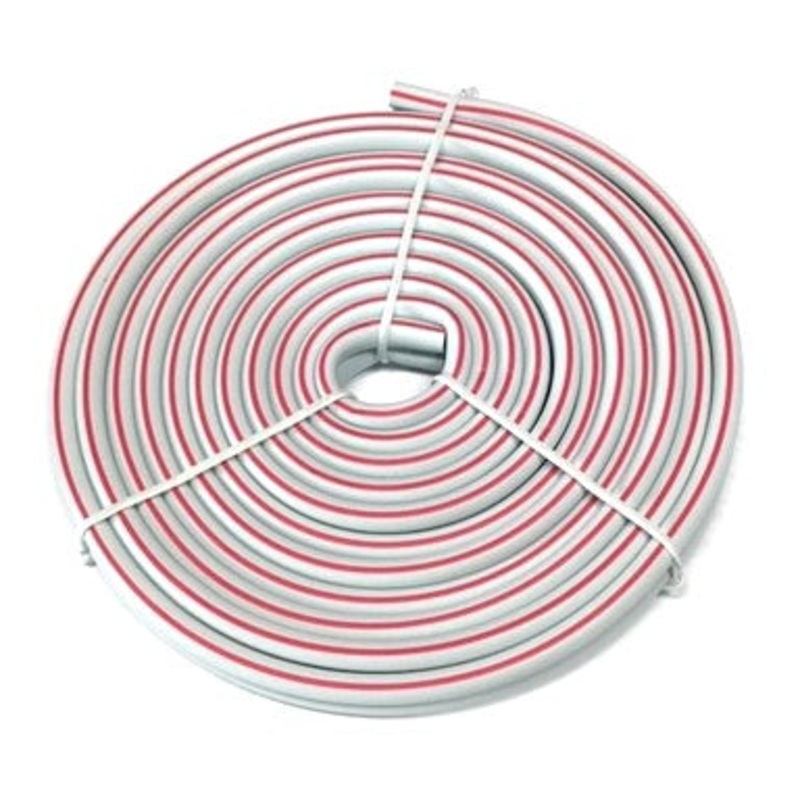

Also Available:
