Dungs SV../614 Safety Shut Off Valve with Proof of Closure

Description

CSA 6.5 Approved

THIS PRODUCT REQUIRES ADDITIONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

Please call or email for information regarding Part numbers and prices not already listed

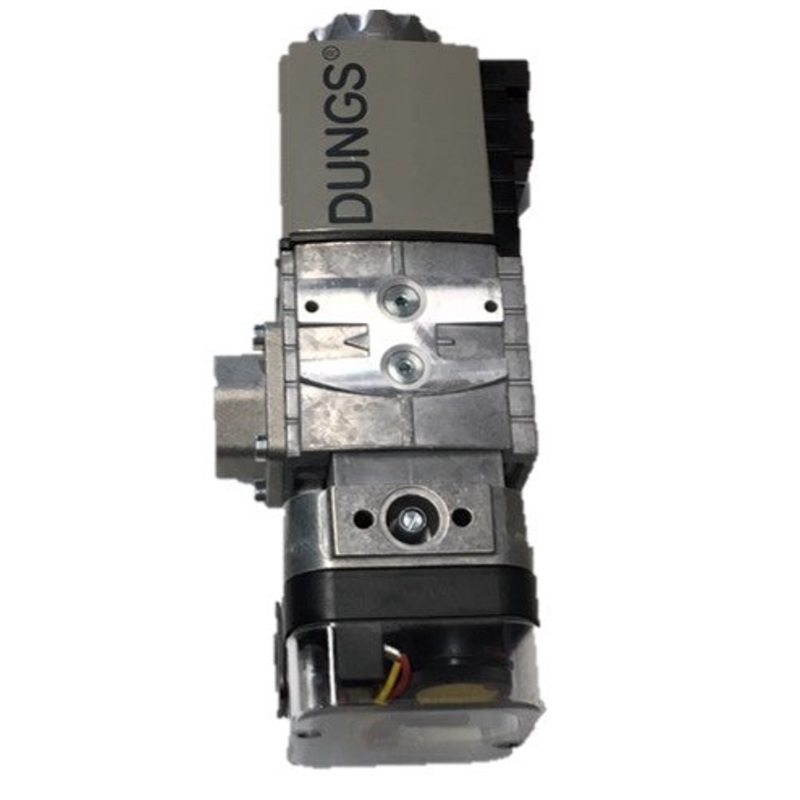

The DUNGS SV and the SV-DLE are electrically operated, normally closed, automatic shutoff valves for gas burning equipment. The SV & SV-DLE /614 Incorporate overtravel and a proof of closure switch.

The SV and SV-DLE are recommended for industrial and commercial heating applications that require one or two automatic shutoff valves in series with proof of closure. The SV and SV-DLE safety shutoff valves are suitable for natural gas, propane, butane, air and other inert gases.

Valves include Flange on Outlet, for an optional Flange on Inlet, see Flange Kits or add Flange Kit to valve in options.

Use with:

• Pressure switches
• Flange Kits

Specifications:

• Pipe thread (NPT):1/2″ 3/4″ 1″ 1 1/4″ 1 1/2″ 2″
• Max. operating pressure:10 PSI (700 mbar) CSA
• Max. close off pressure:15 PSI (1000 mbar)
• Electrical ratings (+10% / -15%): 120 Vac 50 – 60 Hz
• Enclosure rating:
• NEMA Type 4 – Mounted upright only. Indoor
• NEMA 12, Outdoor
• Electrical connection:DIN-connector with 1/2 NPT conduit adapter
• Operating time:100 % duty cycle
• Ambient temperature rating:– 40 F to +140 F (-40 C to +60 C)

Resources:

• SV/614 Shut Off Valve With Proof of Closure Technical Litertaure

• SV/614 Shut Off ValveWith Proof of Closure Installation Instructions
• CSA Approval SV/SV-D/SV-DLE Safety Shutoff Valves

Available Models:

• SV…/614: Single-stage automatic shutoff valve, fast-opening, fast-closing. Incorporates proof of closure.
• SV-D…/614: Single-stage automatic shutoff valve, fast opening, fast closing. Adjustable max flow. Incorporates proof of closure.
• SV-DLE…/614: Single-stage automatic shutoff valve, slow opening, fast closing. Adjustable max flow and adjustable initial lift. Incorporates proof of closure.

Part Numbers:

Part Number Order Number (120 VAC) Pressure Max Operating Size SV-D 1005/614 277110 10 PSI 1/2″ NPT SV-D 1007/614 277111 10 PSI 3/4″ NPT SV 1010/614 267074 10 PSI 1″ NPT SV 1012/614 267078 10 PSI 1-1/4″ NPT SV 1015/614 267071 10 PSI 1-1/2″ NPT SV 1020/614 267080 10 PSI 2″ NPT SV-DLE 1005/614 267077 10 PSI 1/2″ NPT SV-DLE 1007/614 267072 10 PSI 3/4″ NPT SV-DLE 1010/614 267075 10 PSI 1″ NPT SV-DLE 1012/614 267079 10 PSI 1-1/4″ NPT SV-DLE 1015/614 267070 10 PSI 1-1/2″ NPT SV-DLE 1020/614 267081 10 PSI 2″ NPT

Flange Kit Part Numbers:

Flange kit for: (SV Valve Part Number) Size Order Number SV… 1005 / 1007 1/2″ NPT 242650 SV… 1005 / 1007 3/4″ NPT 242651 SV… 1010 / 1012 1/2″ NPT 242653 SV… 1010 / 1012 3/4″ NPT 242654 SV… 1010 / 1012 1″ NPT 242655 SV… 1010 / 1012 1-1/4″ NPT 242656 SV… 1010 / 1012 1-1/2″ NPT 245563 SV… 1015 / 1020 1″ NPT 242657 SV… 1015 / 1020 1-1/4″ NPT 242658 SV… 1015 / 1020 1-1/2″ NPT 242659 SV… 1015 / 1020 2″ NPT 242660
