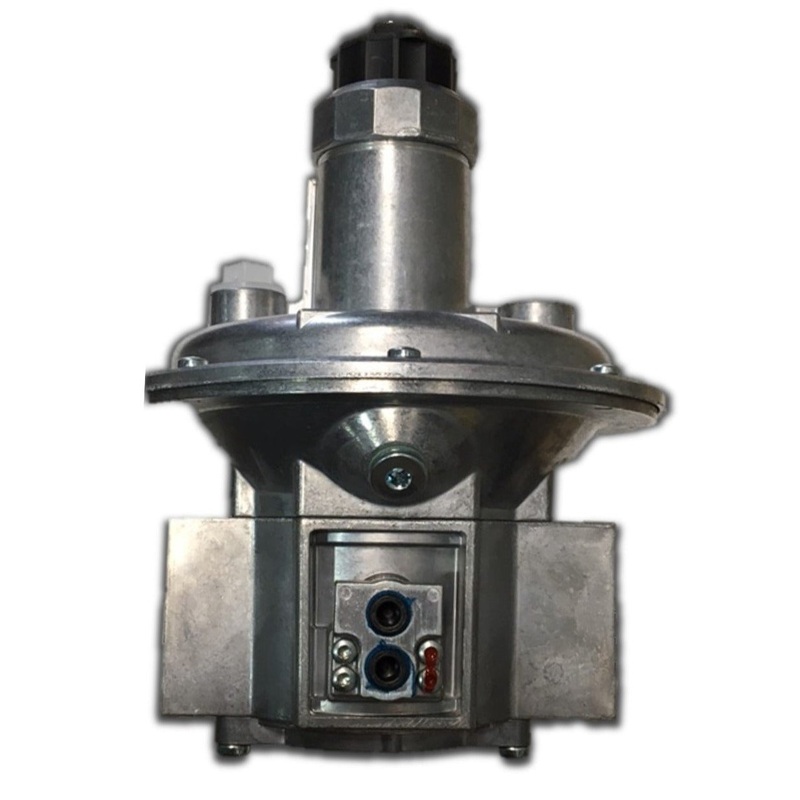

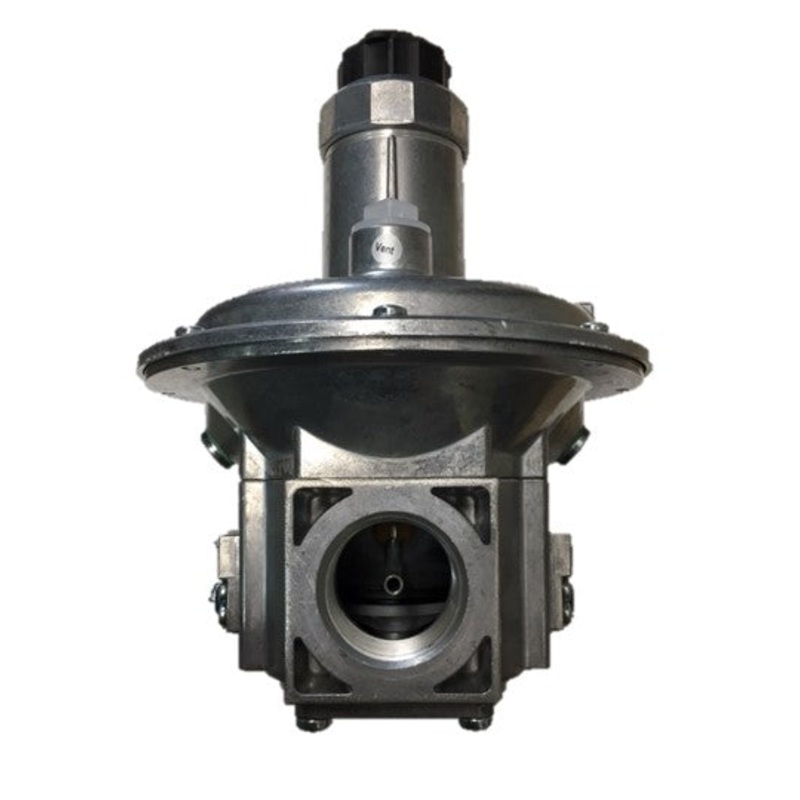

Dungs FRS 7../6 Gas Appliance Regulator CSA 6.3 Approved

Description

CSA 6.3 APPROVED

THIS PRODUCT REQUIRES ADDITIONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

Please call or email for information regarding Part numbers and prices not already listed

The FRS 7../6 Threaded balancing type pressure regulators are spring-loaded pressure regulators with an adjustable setpoint. Both feature an internal sensor for regulating output pressure.

• Input pressures up to 7 PSI
• Heavy duty diaphragm construction for durability and strength.
• Steady, precise and instantaneous regulation of the outlet pressure.
• Lock-up type regulator

Specifications:

• Max. operating pressure: 7 PSI (500 mbar) / CSA 5 PSIG
• Input pressure range: 2 to 200 in. W.C. (5 mbar to 500 mbar)
• Output pressure range:
• 4-12″ W.C.(10 to 30 mbar) (Standard Blue Spring)
• Other adjustable Spring Ranges from 1 to 80 in. W.C. (2.5 mbar to 200 mbar); (see accessories below)
• Ambient temperature rating:
• +5 F to +160 F for up to 10 PSI for regulating behavior (+/- 10% of setpoint)
• -40 F to +160 F for up to 5 PSI: Diaphragms are suitable for the low temperature, but there may be out of range regulating behavior.
• CSA Certified for -40 F to +160 for up to 5 PSI.

Accessories:

• Dungs Springs for FRS 705/503/505 Regulators
• Dungs Springs for FRS 707/507 Regulators
• Dungs Springs for FRS 710/510 Regulators
• Dungs Springs for FRS 712/715/515/5040 Regulators
• Dungs Springs for FRS 720/520/5050 Regulators
• Dungs Springs for FRS 725/730/525/5065/5080 Regulators

Resources:

• FRS 7 CSA6.3 Gas Appliance Regulator Technical Literature
• FRS 7 CSA 6.3 Gas Appliance Regulator Installation instructions
• FRS CSA Certificate of Conformity

Part Numbers:

Part Number Order Number Size Pressure Max Operating (CSA) FRS 705/6 229595 1/2″ NPT 5 PSI FRS 707/6 229608 3/4″ NPT 5 PSI FRS 710/6 229609 1″ NPT 5 PSI FRS 712/6 229610 1-1/4″ NPT 5 PSI FRS 715/6 229611 1-1/2″ NPT 5 PSI FRS 720/6 229612 2″ NPT 5 PSI FRS 725/6 229613 2-1/2″ NPT 5 PSI FRS 730/6 229614 3″ NPT 5 PSI
