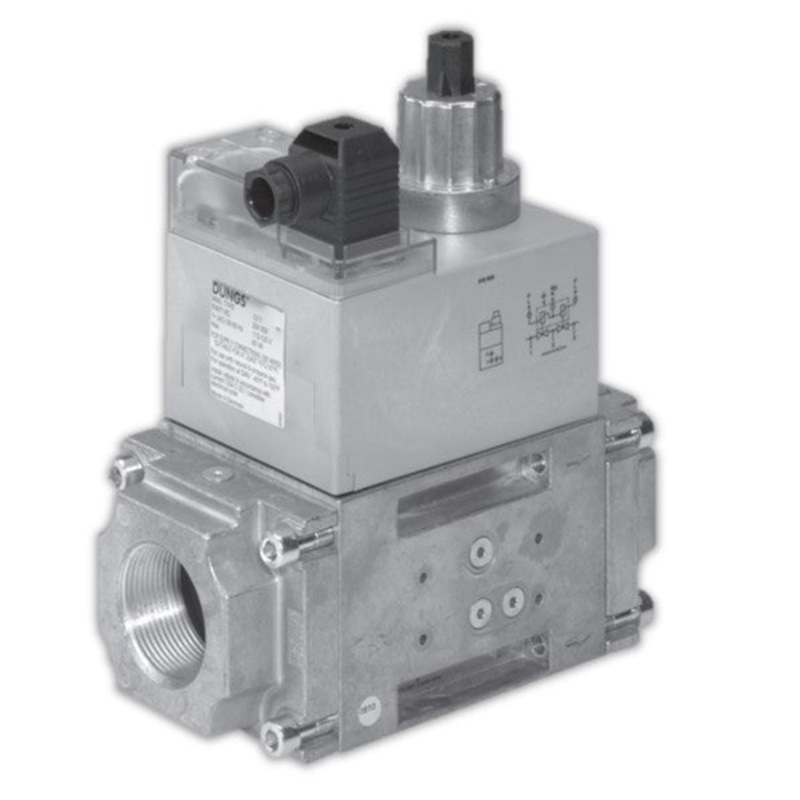

Dungs DMV 602 Dual Modular Safety Shutoff Valves CSA 6.5 Approved

Description

CSA 6.5 APPROVED

THIS PRODUCT REQUIRES ADDITIONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

PLEASE CALL OR EMAIL FOR INFORMATION REGARDING PART NUMBERS AND PRICES NOT ALREADY LISTED

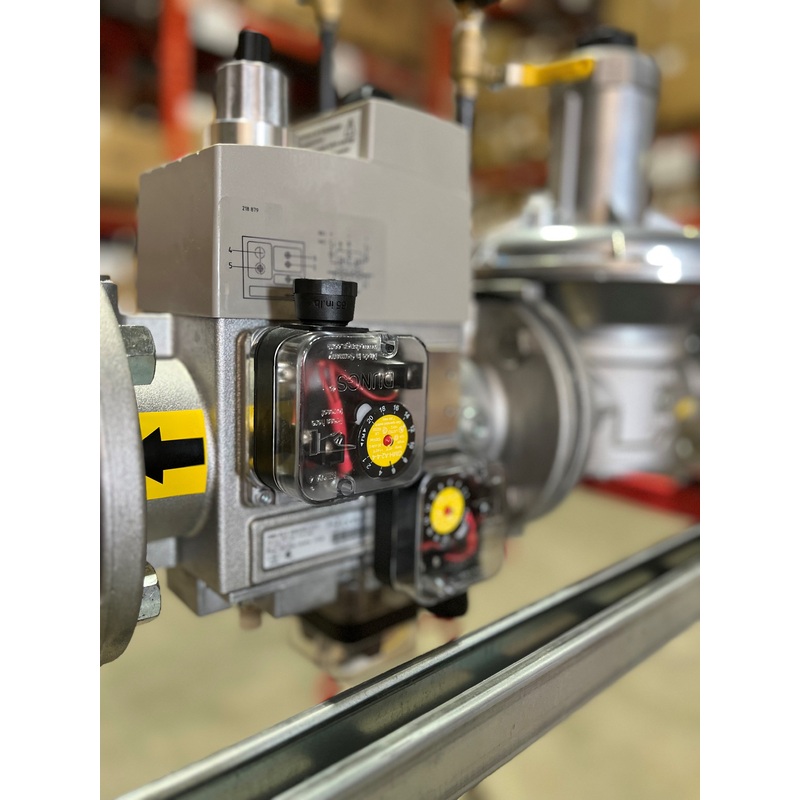

The Dual Modular Valve (DMV) combines two automatic shutoff valves in one compact housing, which can be wired independently or in parallel.

Valve 1 (V1) of the DMV-D and DMV-DLE series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slowopening for smoother light-off. Max.flow adjustment onV2 provides variable main flow on both models.

Internal profiles and compact design optimize flow and provide a low pressure drop. Three body styles reduce inventory.

Directly mounting the following accessories creates a compact valve train without additional piping:

• Pressure regulator
• High and low gas pressure switches
• Valve proving system
• Vent line adapter

Specifications:

• Max. operating pressure: 7 PSI (500 mbar) UL, FM, 5 PSI (360 mbar) CSA
• Electrical ratings (+10% / -15%): 110 – 120 Vac/50 – 60 Hz 24 Vac/50 – 60 Hz; 24 Vdc
• Enclosure:NEMA Type 12
• Electrical Connection:DIN-connector with 3/4 NPT conduit adapter
• Operating time:100 % duty cycle
• Ambient temperature rating: -40 F to +150 F (-40 C to +65 C)

Accessories:

• Dungs Flanges

Resources:

• DMV/602 Dual Modular Safety Shutoff ValvesTechnical Literature

Part Numbers and Accessories:

Part Number 120 VAC Order Number 24 VAC Order Number 24 VDC Order No. Power* [VA] Pressure Max Operating (CSA) DMV-D 701/602 224842 228220 226990 45 5 PSI DMV-D 702/602 224843 228221 226991 65 5 PSI DMV-D 703/602 224844 228222 226992 90 5 PSI DMV-DLE 701/602 224845 228223 226993 45 5 PSI DMV-DLE 702/602 224846 228224 226994 65 5 PSI DMV-DLE 703/602 224847 228225 226995 90 5 PSI

* Inrush current and full load current have the same VA rating

Flange Part Numbers:

Mounts to DMV Type Order Number Size DMV 701 222371 1/2″ NPT DMV 701 222368 3/4″ NPT DMV 701 221999 1″ NPT DMV 702 or DMV 703 222369 1″ NPT DMV 702 or DMV 703 222370 1-1/4″ NPT DMV 702 or DMV 703 222003 1-1/2″ NPT DMV 702 or DMV 703 221997 2″ NPT
