Digital Thickness Gauge, Deep Throat Inch/Metric, 0-0,4, 0,0005 547-320A
Product image
-56%
Product image
Product image

Digital Thickness Gauge, Deep Throat Inch/Metric, 0-0,4, 0,0005 547-320A

Original price was: $331.80.Current price is: $145.00.

SKU: TEEnycsYDb1Xn Category:

Description

Mitutoyo; Digital Thickness Gauge

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.

  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Functions: With indicator ID-C No.543.0-712.0BS( ASME/ANSI Type)

Delivered: In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149

Range: 0 – 0,4 “

Type: Ceramic disc contact points and large jaw capacity

Digital step: 0,0005″/0,01 mm

Accuracy: 20 m

Parallelism: 0,0005″/ 0,01 mm

Protection: IP42

Indicator No.: 543-712-10BS

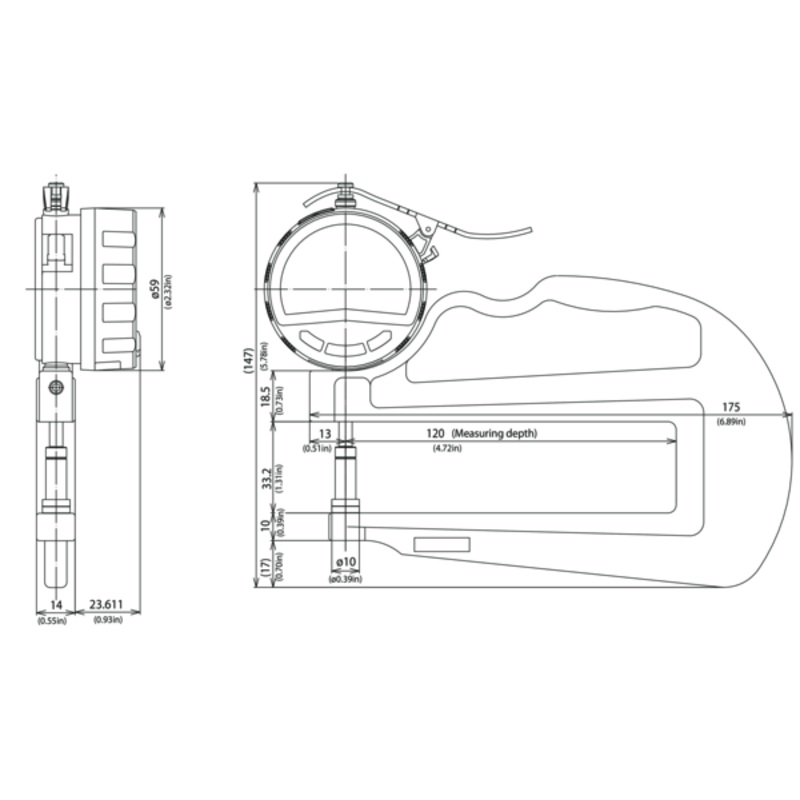

Max. measuring depth: 120 mm

Measuring force: 1.5 N

Display: LCD, character height 11 mm

Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Power supply: 1 battery CR2032 (3V)

Battery life: Continuous use: approx. 2700h

DATA/HOLD: Yes

Digimatic data output: Yes

ON/OFF: Yes

Function lock: Yes

GO/NG judgement: Yes

ABS / INC (INC ZERO): Yes

Calculation function (with formula): Yes

Counting direction switchable: Yes

Digimatic S1 Bidirectional interface: Yes

Analog bar resolution selection: Yes

Auto Power OFF setting: Yes

Analog bar resolution switchable: Yes

Customizing keys: Yes

Inch/Metric switchable: Yes

Calibration warning function: Yes

Digital step switchable: No

Digital Scale: Electrostatic capacitance type absolute linear encoder

Mass: 385 g
