Description

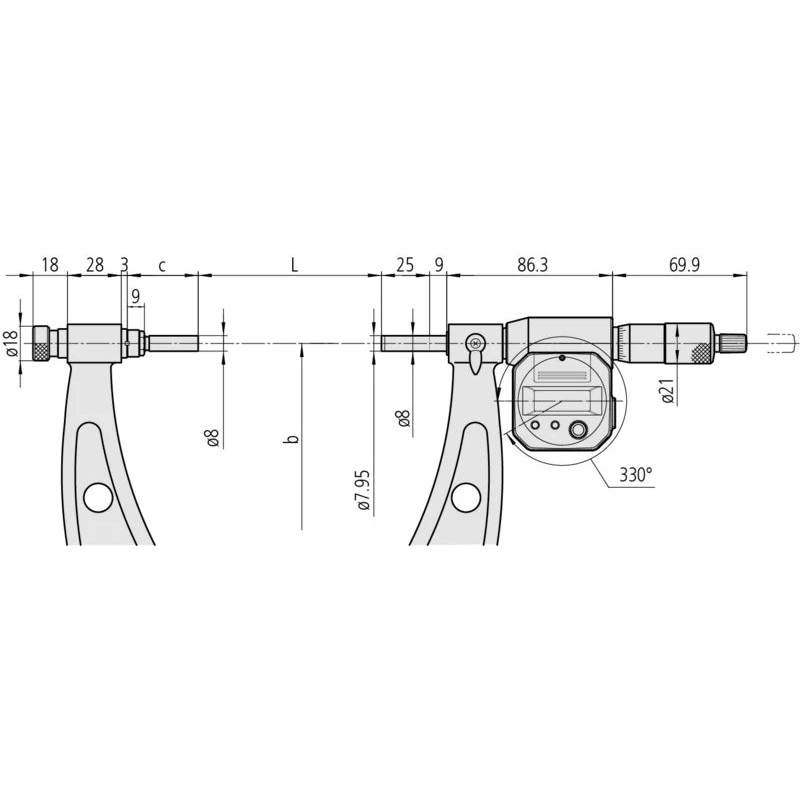

Mitutoyo; Digital Interchangeable Anvil Micrometer
Digital/Analog: Digital
Delivered: Including box, spanner, setting standard, 4 anvils, 2 SR44 batteries
Inch-Metric: Metric
Range: 700 – 800mm
Digital step: 0,001 mm
Limit of error: 15 m
Spindle feed error: 3m
Flatness: 1 m
Parallelism: 10 m
Display: LCD, character height 7.5 mm
Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, 6,35 mm (300 mm) 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, 21 mm
Measuring force: 10 – 15N
Power supply: Battery SR-44
Battery life: Approx. 2.4 years for models 300 mm
1.8 years for >300 mm
Setting standard:4 (700, 725, 750, 775 mm)
Interchangeable anvils: 4
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use:
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
2 x PRESET: Yes
Mass: 8.2kg
