Description

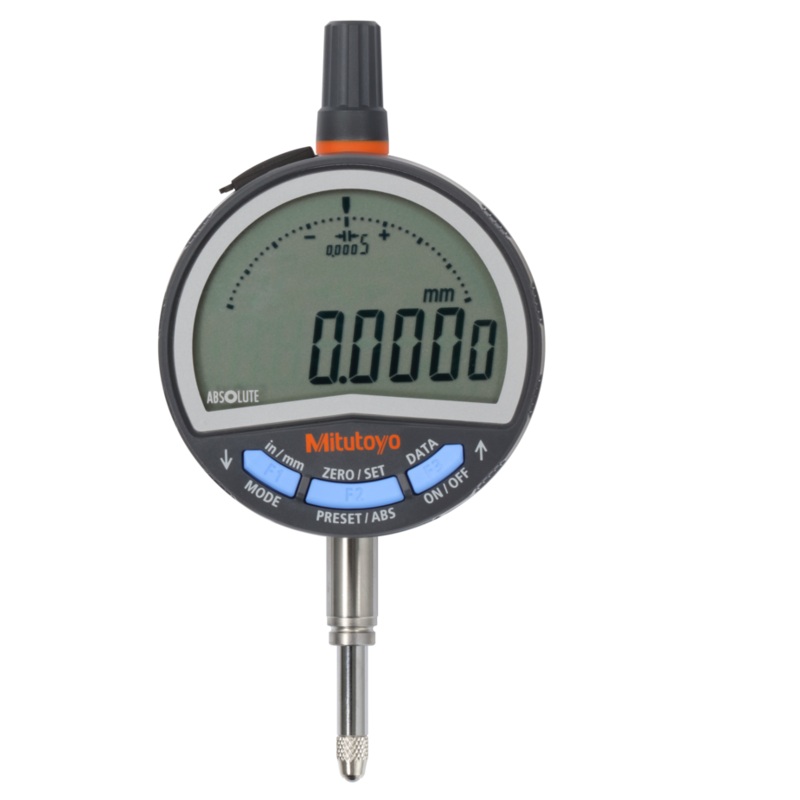

This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you dont have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Model with 0,5 m digital step is available.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/NG judgement is performed by setting the upper and lower tolerances.
- Display 330 rotatable.
- A function lock protects the display against unauthorised use.
- Range: 0-12.7mm (0-0.5)
- Selectable Resolution: 0.01/0.001mm (0.0005/0.0001/0.00005)
- Accuracy: 0.003mm (0.0001)
- Hysteresis: 0.002mm (0.0001)
- Repeatability: 0.002mm (0.0001)
- Measuring Force: 1.5N or less
- Stem diameter: 8mm
- Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
- Scale: Capacitance type, ABSOLUTE linear encoder
- Shockproof
