Digital Indicator High Accuracy ID-H, 60.9mm/2.4, BS AC-Adapter, .0005mm/.00002 543-562E

Original price was: $704.45.Current price is: $145.00.

SKU: 543-562E Category:

Description

A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Functions: ANSI/AGD type

Delivered: Including AC-Adapter, spindle lifting handle, certificate of inspection

Range: 2.4″/60.9mm

Digital step: 0.00002″/0.00005″/0.0001″/0.0005 mm/0.001 mm

Max. Permissible Error
E MPE (Total Range): 0.00006″/0.0015 mm

H MPE (Hysteresis): 0.00006″/0.0015 mm

R MPE (Repeatability): 0.00004″/0.001 mm

Measuring force MPL: 2 N

Protection: IP30

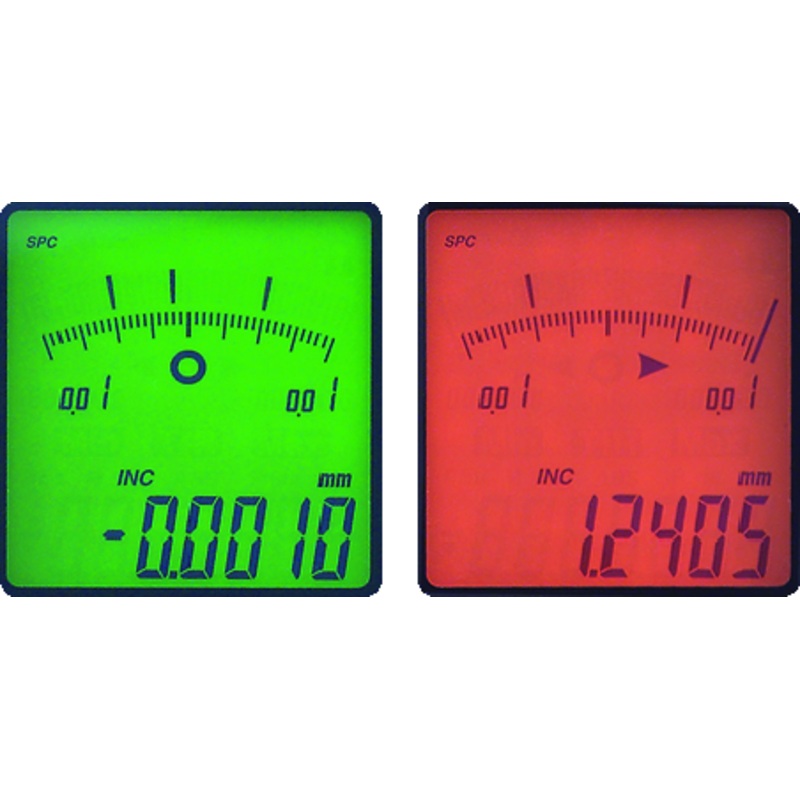

Display: LCD with red/green backlight, character height 9.5 mm

Max. response speed: 1000 mm/s

Alarm: Counting value composition error, overflow error, tolerance setting error

Stem : 9.52 mm

Contact point: Carbide ball, thread: No.4-48UNF

Power supply: AC adapter 6 V DC, 2A

Remarks: RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131)

DATA/HOLD: Yes

Digimatic data output: Yes

ON/OFF: Yes

Analog bar resolution switchable: Yes

Function lock: Yes

GO/NG judgement: Yes

RS-232C Output/Input: Yes

RS-232C Input*: Yes

ZERO SET: Yes

Selectable resolution: Yes

Counting direction switchable: Yes

Inch/Metric switchable: Yes

Digital Scale: Photoelectric linear encoder
