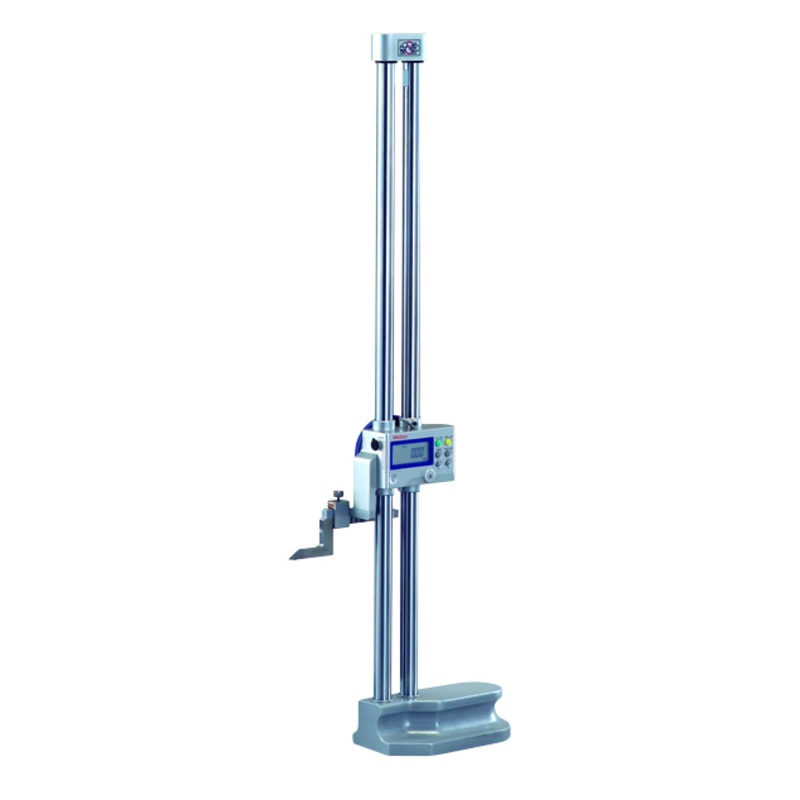

Name: Digital Height Gauge Double Column 0-24/600mm, Probe Connector, Inch/Metric 192-672-10
SKU: TEESTnNRQFsIe
Price: 146.00 USD
Availability: InStock

Description

A Mitutoyo digital height gauge, twin column design. Multi-functional type. Digimatic data output. An extensive range of accessories extends the application range.

Specification

Digital/Analog: Digital

Delivered: Including carbide tipped scriber, scriber clamp, SR44 battery and dust cover

Range: 0 – 24 “/0-600mm

Digital step: 0,0005/0,0002″ or 0,01/0,005 mm

Max. Permissible Error E MPE: 0,0015″/0,04 mm

Max.
Permissible Error
J MPE: 0,04 mm/0,0015″

Display: LCD, Character Height: 11 mm

Max. response speed: 500 mm/s

ON/OFF: Yes

ABS / INC (INC ZERO): Yes

PRESET (2 values): Yes

Touch-trigger probe: Yes

Stylus tip diameter compensation: Yes

DATA (output with cable) / HOLD (display value): Yes

Low voltage alarm: Yes

SWITCHING: Yes

Mm/inch switching: Yes

Inch-Metric: Inch/Metric

Delivered: Including scriber, scriber holder, 1 battery and cover

Power supply: 1 battery SR-44

Battery life: approx. 3500 hours

Mass: 9.5 kg

Digital Height Gauge Double Column 0-24/600mm, Probe Connector, Inch/Metric 192-672-10
