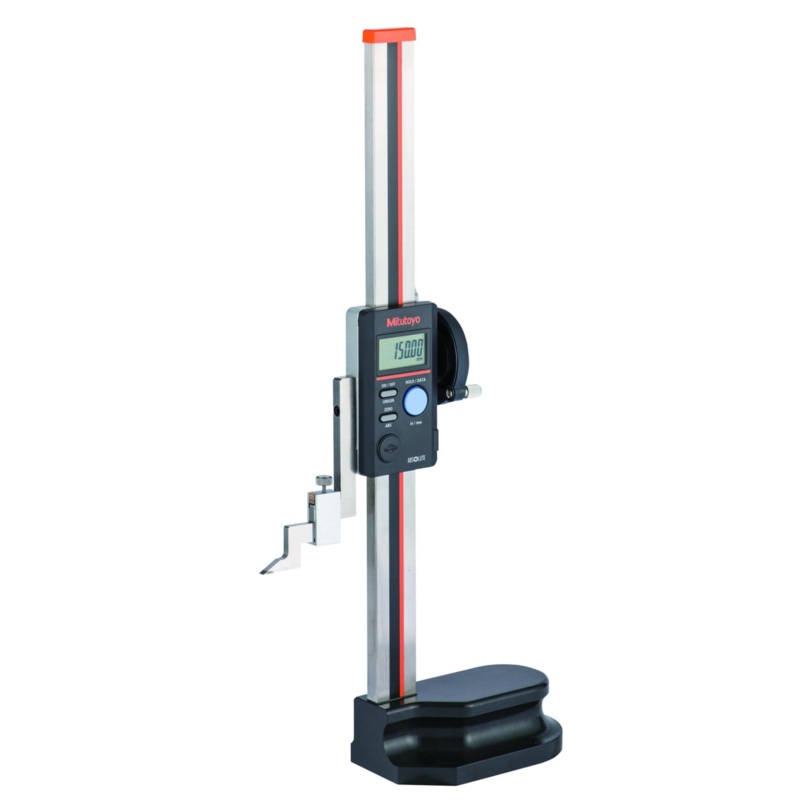

Digital ABS Height Gauge Inch/Metric, 0-12, with Handwheel 570-412

Original price was: $599.00.Current price is: $146.00.

SKU: TEEEsWV6SDAQy Category:

Description

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:

  • Its built-in ABSOLUTE linear encoder means you dont have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
  • It comes with large and smooth-acting slider hand wheel
  • A carbide-tipped scriber is provided.
  • A large display and buttons for easy operability.

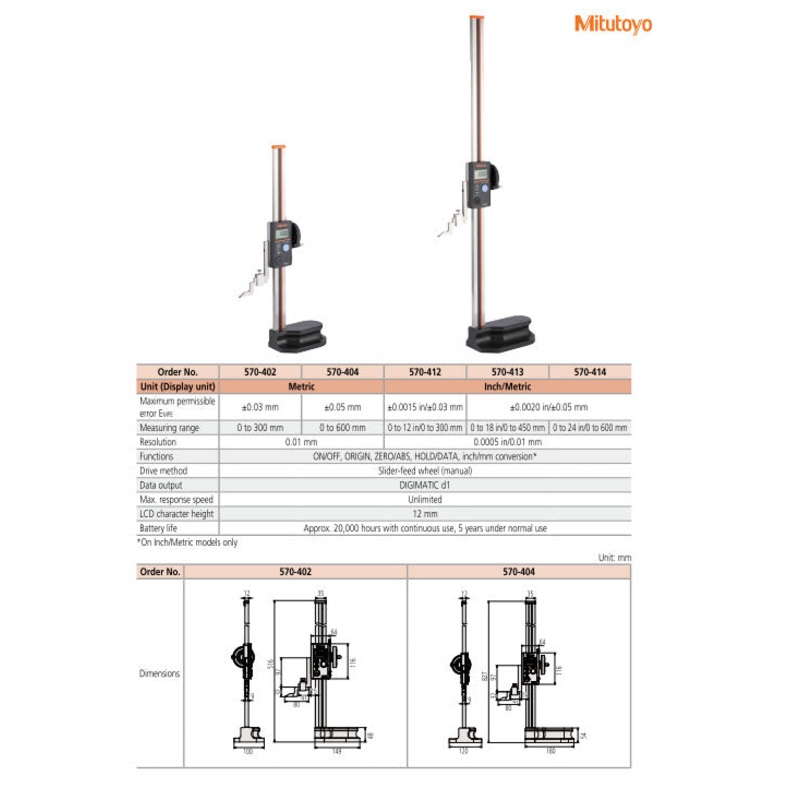

Specification

Digital/Analog: Digital

Delivered: In a carton box, with carbide tipped scriber, scriber clamp, SR44 battery

Range: 0 – 12″ /0-300mm

Digital step: 0,0005″/0,01 mm

Max. Permissible Error E MPE: 0,0015″/0,03 mm

Scale: ABSOLUTE capacitance type linear encoder

Display: LCD, character height 12 mm

Max. response speed: Unlimited

ON/OFF: Yes

ABS / INC (INC ZERO): Yes

ORIGIN (ABS-Zero): Yes

DATA (output with cable) / HOLD (display value): Yes

Low voltage alarm: Yes

Mm/inch switching: Yes

Inch-Metric: Inch/Metric

Delivered: Including 1 battery, scriber and scriber clamp

Power supply: 1 battery SR-44

Battery life: Approx. 5 years under normal use

Dimensions
