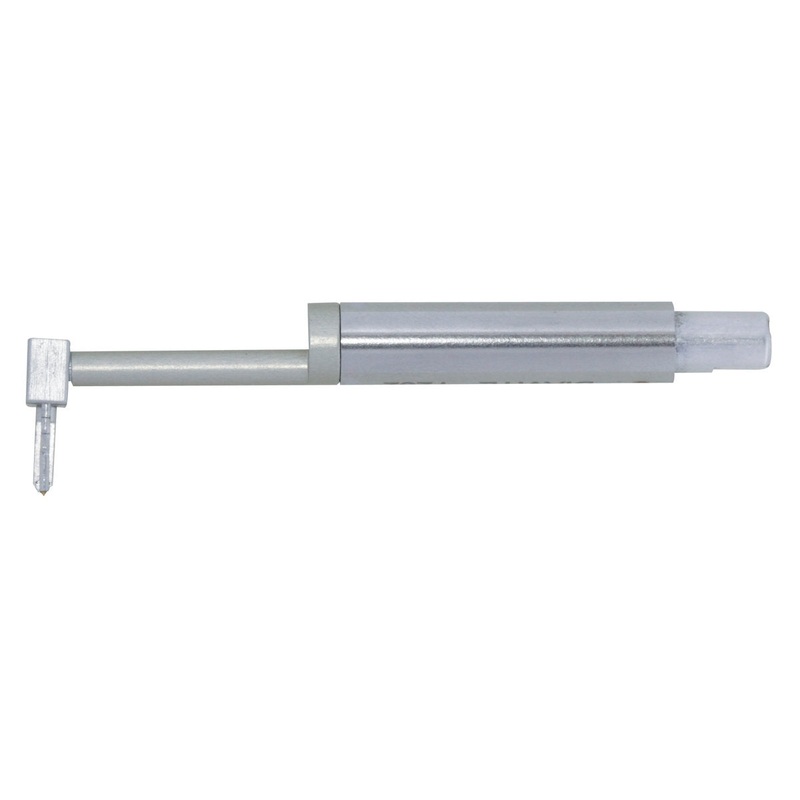

Diavite Tracer KKH with skid, concave/vex surface, 8 mm, 5 m/90 for VH/VHF, Article code: KKH-08/10/90/5

-88%

Diavite Tracer KKH with skid, concave/vex surface, 8 mm, 5 m/90 for VH/VHF, Article code: KKH-08/10/90/5

Original price was: $1,190.00.Current price is: $145.00.

SKU: TEEEfVTByJGM8 Category: Surface Finish

Description

Description

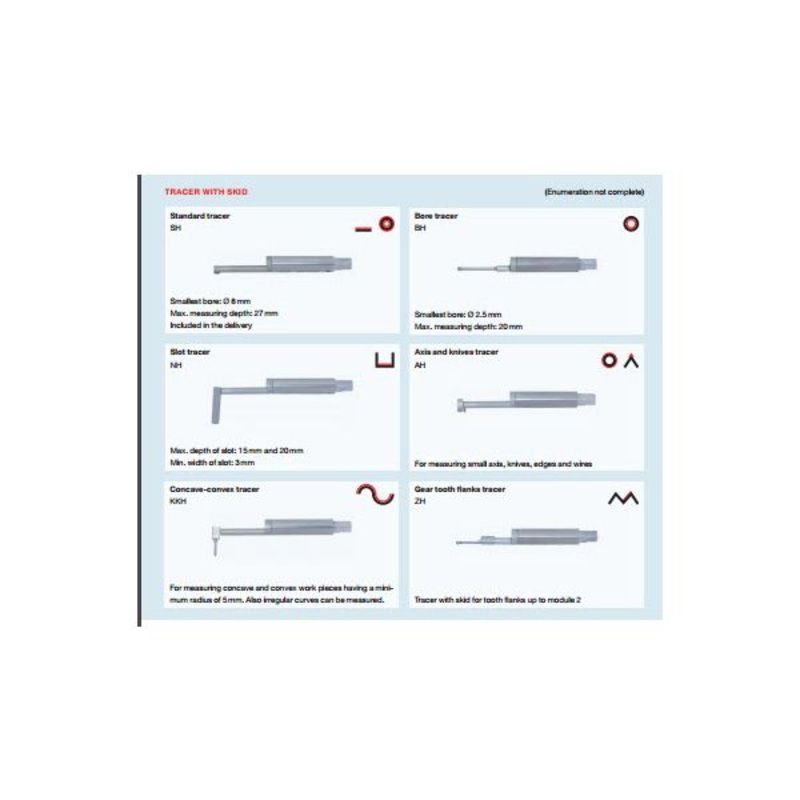

PDF Brochure

Diavite Tracer KKH with skid, concave/vex surface, 8 mm, 5 m/90 for VH/VHF, Article code: KKH-08/10/90/5

tracer for concave and convex parts with a minimum radius of 5 mm
irregular curvatures can also be measured
the minimum lt and lc must be applied
radius of the tip: standard 5 m
radius of skid: r = 1 mm
do not use with the advance device down
the use of a stand for the advance device is strongly advised
