Diavite NH-15/00/90/5 Tracer for measuring slots up to 15mm deep

Original price was: $960.00.Current price is: $146.00.

SKU: TEEB6mUakgEPL Category: Surface Finish

Description

Description

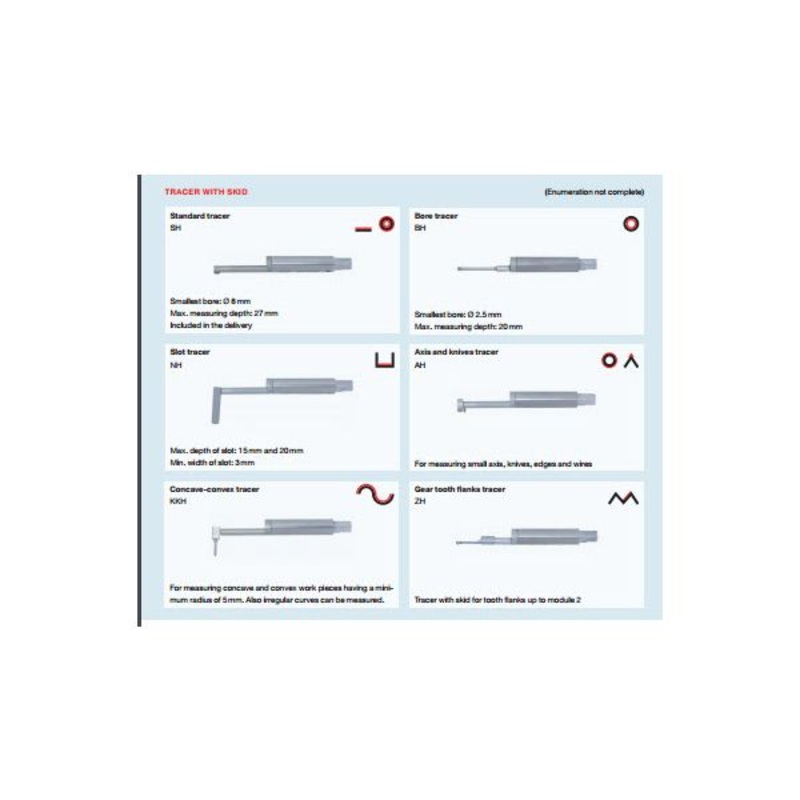

PDF Brochure

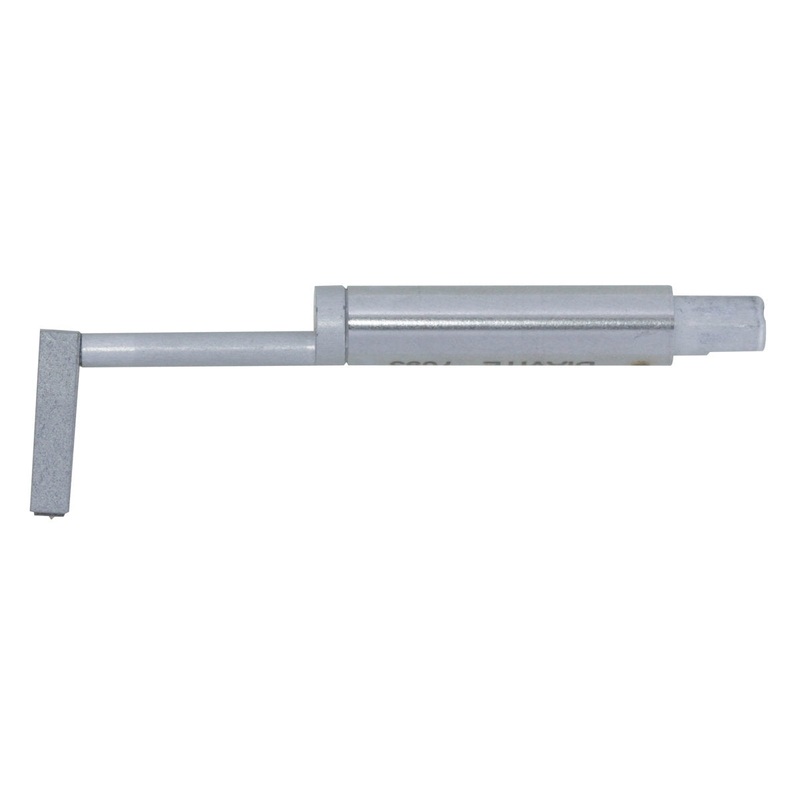

Diavite NH-15/00/90/5 Tracer for measuring slots up to 15mm deep

maximum depths of grooves: 15 mm (NH-20 for max depth 20 mm)
groove width min: 13 mm
radius of the tip: standard 5 m / 90
radius of skid: r = 25 mm
do not use with the advance device down
the use of a stand for the advance device is strongly advised

Model SH Tracer Standard Stylus Detector Conical taper angle 60 Stylus tip radius 2m Diamond Additional Details

Skid=Yes

Measuring Depth=27mm

Minimum Diameter=8mm
