WELDED MINI-SEALS

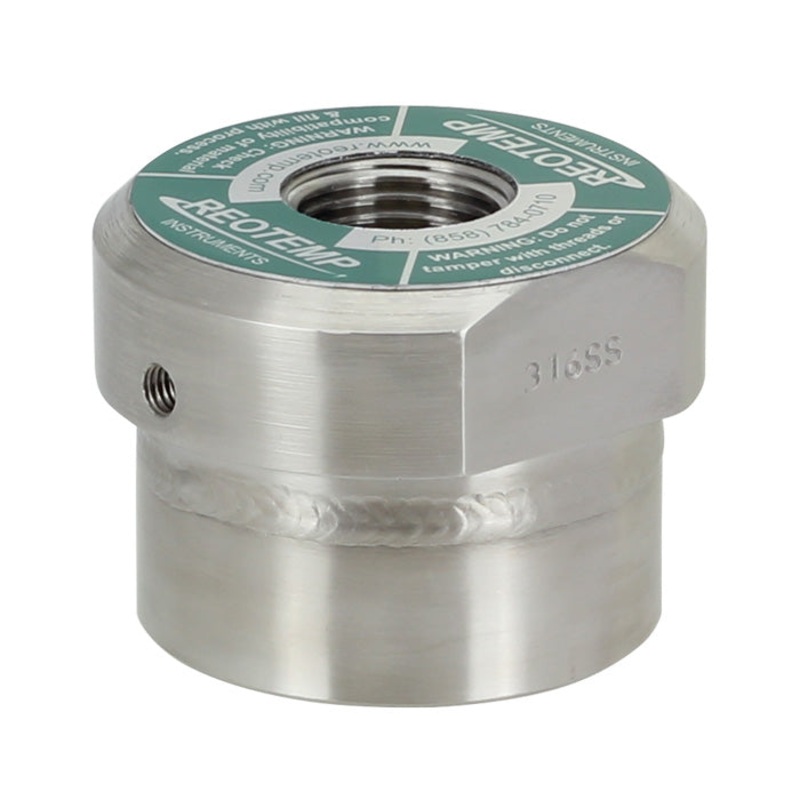

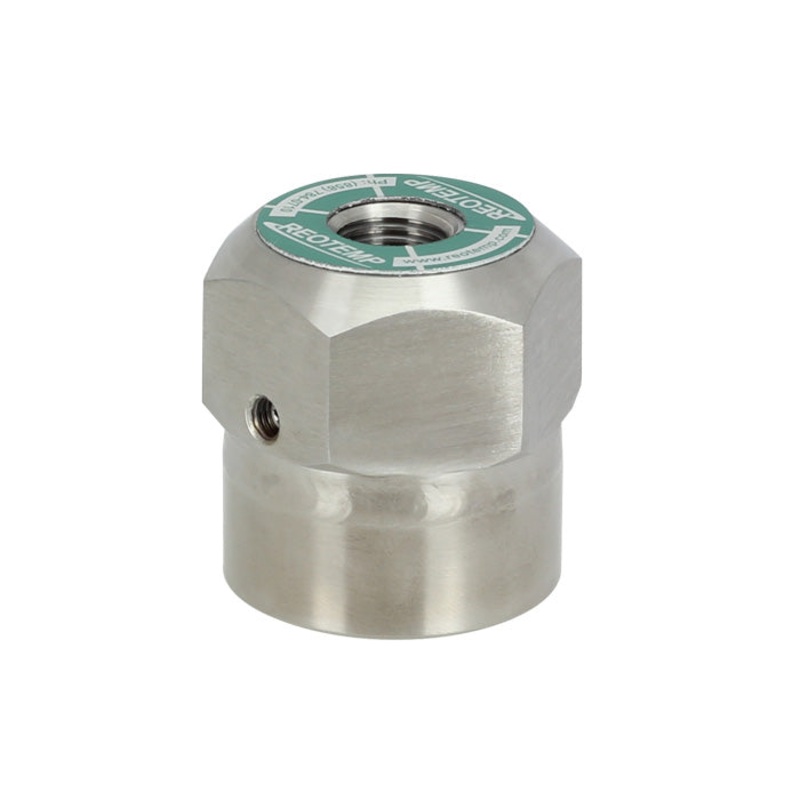

Welded Mini Seals are ideal for applications where a gauge or general purpose transmitter cannot be installed directly into the process media. Mini seals are a one-piece, all-welded construction that offer a durable, economical choice for protecting a pressure instrument from corrosion, clogging, or high process temperatures.

• Economical Choice for Protecting a Pressure Instrument from Severe Process Media
• All-welded Design Reduces Fugitive Emission Leaks
• Available with PulsePlus Pulsation Dampening
• Tamper Resistant

Specifications

Construction Materials

Upper Housing: 316SS Diaphragm: 316SS Hast C-276, Monel Lower Housing: 316SS, Hast C-276, Monel

Process Temperature Limits

MS4 -40F/300F MS6/7 -40F/400F MS8 -110F/750F

Ambient Temperature Limits

Determined by the Pressure Instrument

Minimum Recommended Pressure Ranges

MS4 MS6 MS7 MS8 2.5 & 3.5 Gauges 30 psi 15 psi 10 psi 15 psi 4, 4.5, & 6 Gauges n/a 60 psi 15 psi 30 psi Transmitter(Gauge Pressure) 15 psi 10 psi 100 WC 150 WC Transmitter (Differential Pressure) n/a n/a 150 WC 300 WC

Maximum Working Pressure at 100F

316SS Hast-C Monel MS4 2,000 psi 1,000 psi 1,000 psi MS6 1,000 psi N/A N/A MS7 750 psi 750 psi N/A MS8(1/4 or 1/2 connectors) 5,000 psi 2,000 psi N/A MS8 (3/4 male) 2,000 psi N/A N/A MS8 (1 male) 1,000 psi N/A N/A
