FLANGED OFFLINE WELDED DIAPHRAGM SEALS

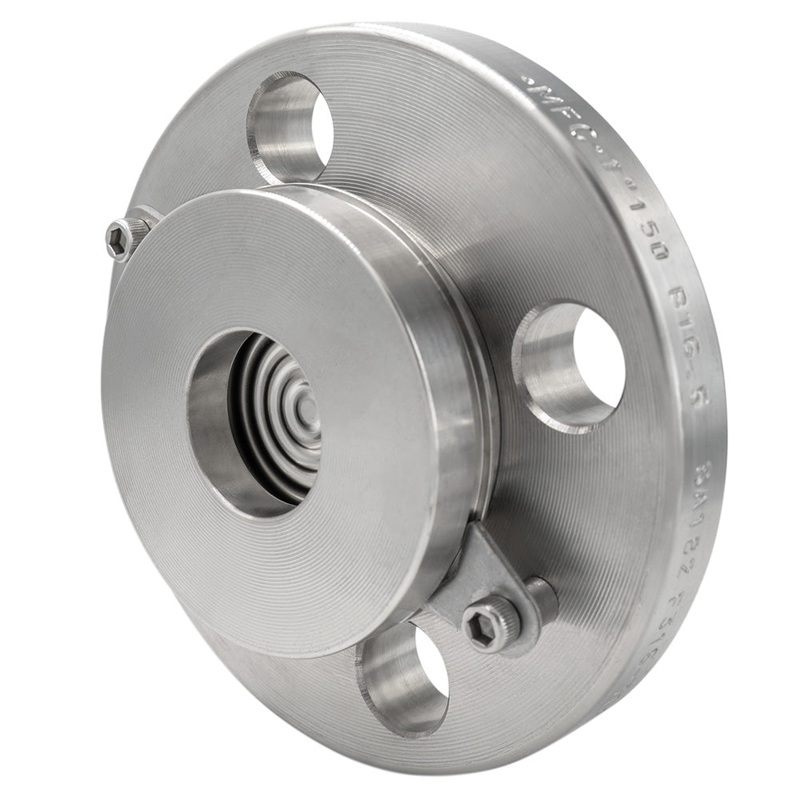

Flanged Offline Welded Diaphragm Sealsare designed with an upper and lower housing, bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while maintaining the system fill. The flanged offline diaphragm seal can be adapted to fit almost any pressure instrument and process application.

• Welded Diaphragm for Maximum Durability
• Wide Variety of Diaphragm and Material Options
• Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach
• Easy Cleanout of Diaphragm Cavity without Compromising Filled System

Specifications

Construction Materials

Diaphragm (Wetted): 316/316L SS, Hast C-276, Tantalum, Monel A400, Nickel 201, or Others Lower Housing (Wetted): 316/316L SS, Hast C-276, Monel A400, Alloy 20, Hast B, or Others Gasket (Wetted): Klinger C-4401, PTFE Durlon 9600, Grafoil, Kalrez, or Virgin PTFE Upper Housing (Non-wetted):316/316L SS, 304/304L SS, Monel A400, or Titanium

Process Temperature Limits

HousingType 2 3 Metallic Lower PTFE Gasket -110/400F Klinger Gasket -110/500F Grafoil Gasket -40/750F Non-Metallic Lower N/A 140F

Ambient Temperature Limits

Determined by the Pressure Instrument

Minimum Recommended Pressure Ranges

W5 W6 2.5 & 3.5 Gauges 15 psi 200 H2O 4, 4.5, & 6 Gauges 30 psi 200 H2O Transmitter (Gauge Pressure) 150 H2O 60 H2O Transmitter (Differential Pressure) 300 H2Od 60 H2Od Differential Pressure Gauge(D40/42 Only) N/A N/A

Maximum Working Pressure

Determined by flange.

Data Sheet

Download Flanged Offline Welded Seals Datasheet

Installation Instructions

Download Installation Instructions:

• Diaphragm Seal Installation Instructions DSINST-0223 (PDF)
• Torque Specification Reference Sheet ETB-0424 (PDF)
