Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T

Original price was: $126.00.Current price is: $63.00.

SKU: TEEc4P8AfsvBy Category:

Description

A versatile anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Specification

Digital/Analog: Analog

Inch-Metric: Metric

Type Full Set Delivered:

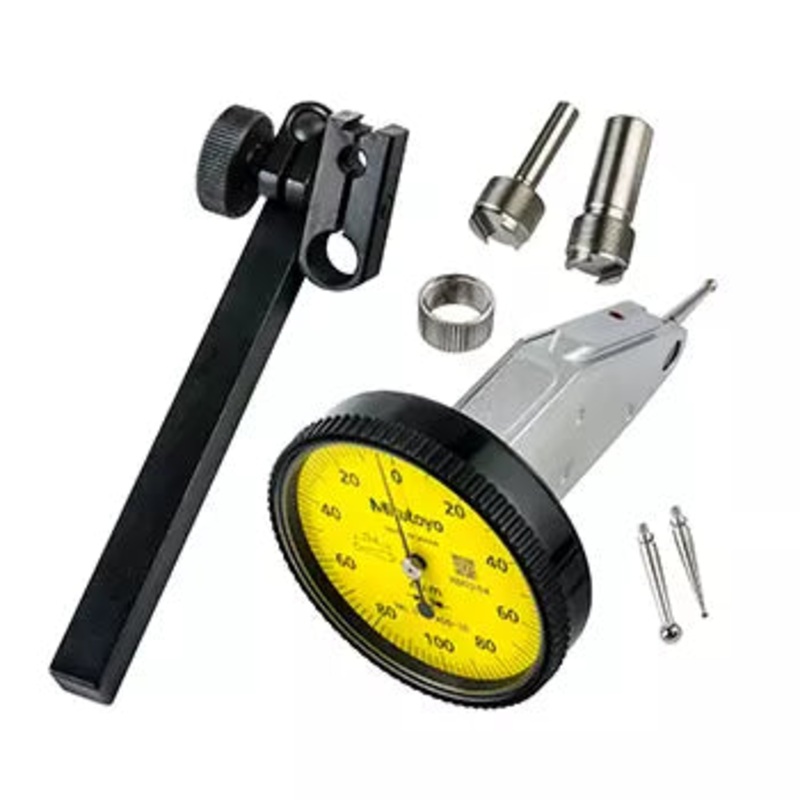

  • Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
Range: 0.2 mm

Dial reading: 0-100-0

Graduation: 0.002 mm

MPE any 10 scale divisions: 2 m

MPE any 1/2
revolution:
3 m

MPE measuring range: 3 m

H MPE
(Hysteresis):
2 m

R MPE
(Repeatability):
1 m

Carbide stylus tip 2 mm No.: 103011

Mass: 46 g

Contact point: Thread M 1.7 x 0.35
