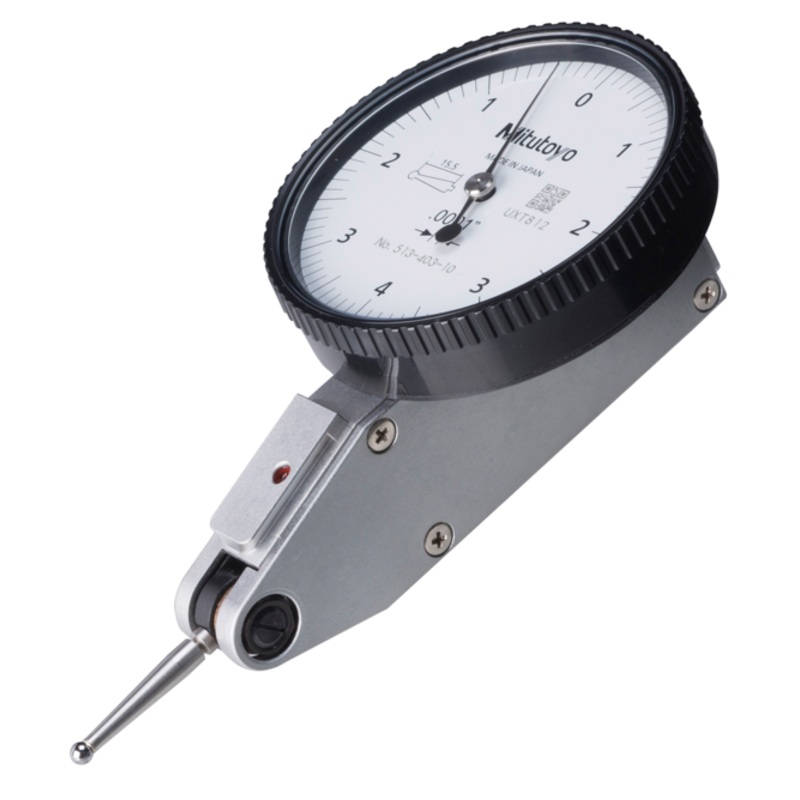

Dial Test Indicator, Horizontal Type 0.008, 0.0001, 4/9.52mm Stem, Bracket 513-403-10T

Original price was: $125.30.Current price is: $62.65.

SKU: TEEmzVbzJqE3a Category:

Description

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Specification

Digital/Analog: Analog

Inch-Metric: Inch

Delivered: In a box with stem 3/8″ (9,52 mm) / 0,157″ (4 mm), stylus 0,039″/0,079″/0,118″, swivel clamp / holding bar

Range: 0,008

Dial reading: 0-4-0

Graduation: 0,0001″

H MPE (Hysteresis): 0,0001″

R MPE (Repeatability): 0,00004″

MPE first one revolution: 0,0001″

Type: Full set

Measuring force: 0,01-0,3 N

Mass: 58 g

Contact point: Thread M 1.7 x 0.35
