Description
Dial Indicator Thickness Gauge, Standard, 0-0.05″, 0.0001″, 7326S
A Mitutoyo high-resolution dial-gauge-based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for precise measurement of the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.

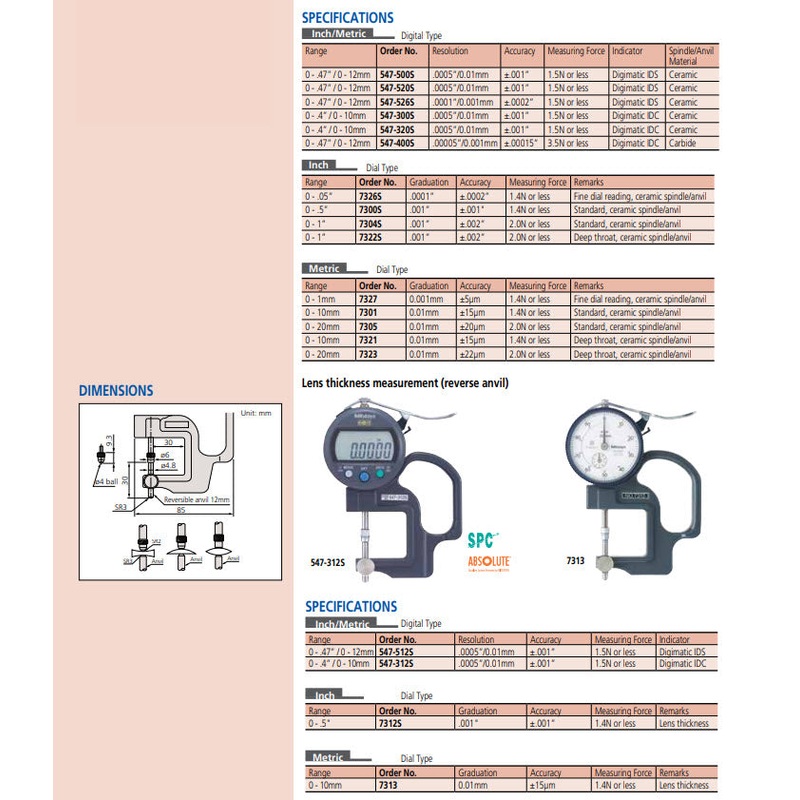

Specification
- Inch-Metric: Inch
- Functions: Ceramic disc contact points
- Range: 0 – 0.05″
- Graduation: 0.0001″
- Accuracy: 0.0002″
- Parallelism: 0.0002″
- Max. measuring depth: 1.2″
- Mass: 205 g
- Contact point: Thread # 4-48UNF
All images are for representation only.
