Description
Dial Indicator Thickness Gauge 0-0.05″, 0,001″, Groove Depth, Ceramic Contact Elements, 7316A
This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

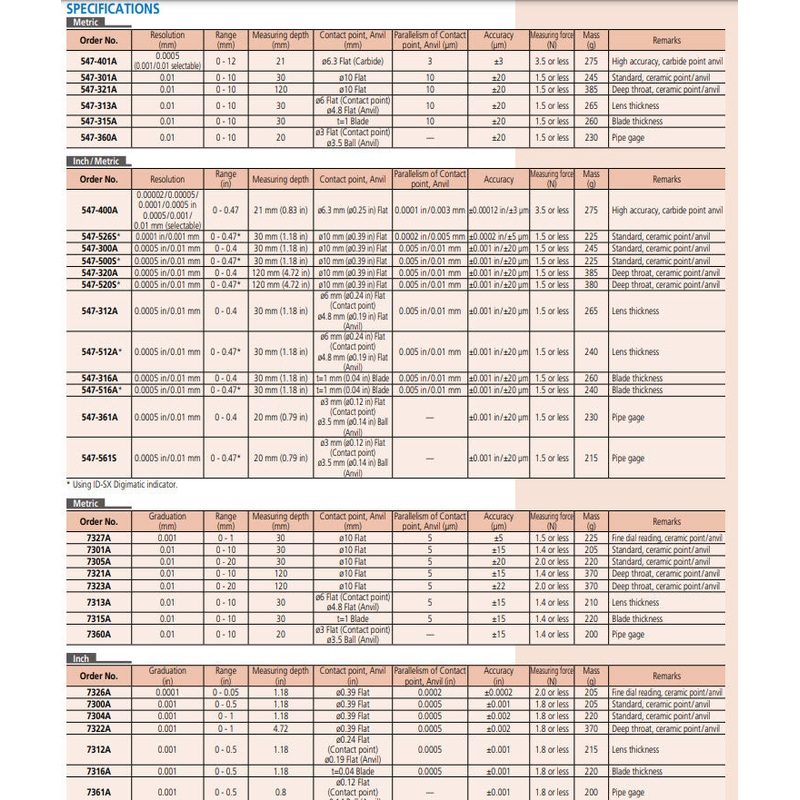

Specification
- Inch-Metric: Inch
- Functions: Knife-edge contact point
- Range: 0 – 0.05″
- Graduation: 0.001″
- Accuracy: 0,001″
- Parallelism: 5 m
- Max. measuring depth: 1.2″
- Mass: 220 g
- Contact point: Thread # 4-48UNF
All images are for representation only.
