Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,001mm 2118A-10

Original price was: $93.10.Current price is: $46.55.

SKU: TEEKHvw1q4pU7 Category:

Description

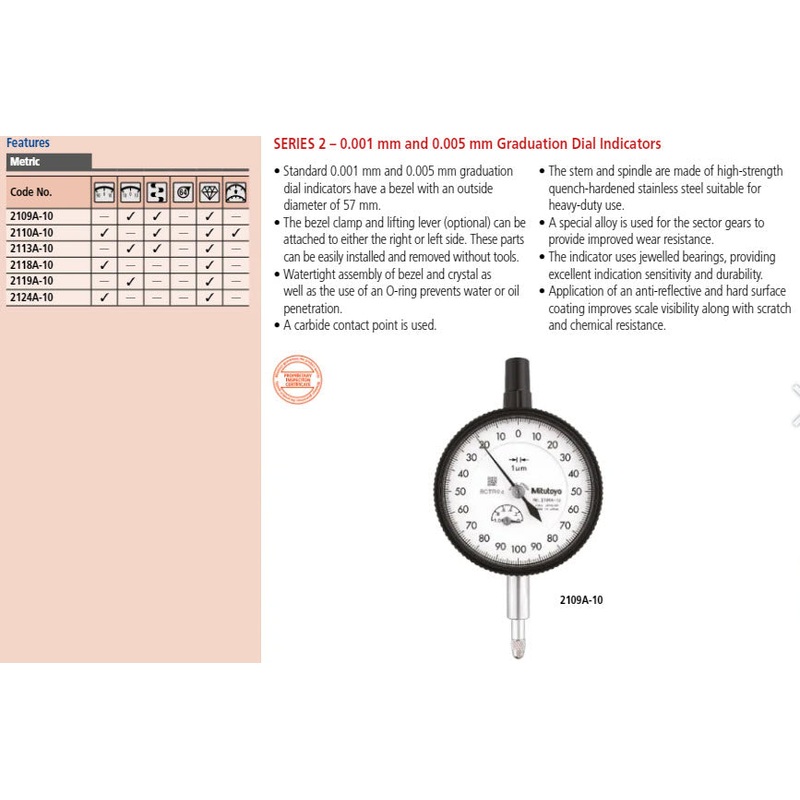

Standard Type, 2 and 5 mm Range, 0,001 / 0,005 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Specification

Digital/Analog: Analog

Inch-Metric: Metric

Functions: ISO type

Delivered: With certificate of inspection

Range: 5 mm

Range
per rev.:
0.2 mm

Dial reading: 0-100-100

Graduation: 0.001 mm

Measuring force: 0,4-1,5

MPE any 1/10
revolution:
4 m

MPE any 1/2
revolution:
6 m

MPE any 1
revolution:
6.5 m

MPE measuring range: 10 m

H MPE
(Hysteresis):
2.5 m

R MPE
(Repeatability):
2 m

Mass: 146 g

Stem: 8 mm

Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm

Continuous dial: Yes
