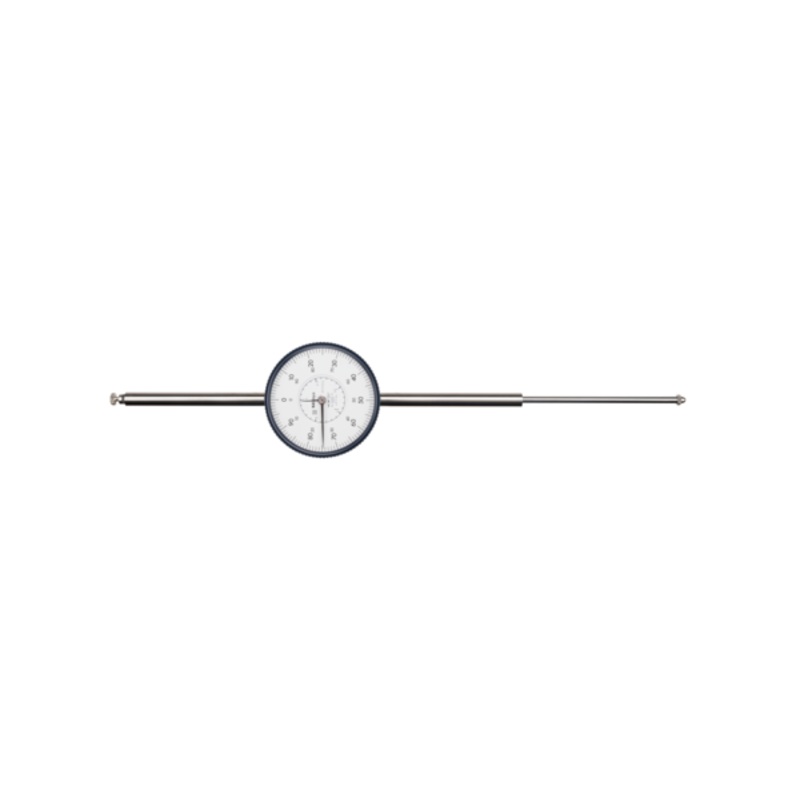

Dial Gauge, Lug Back, ANSI/AGD Type 3428A-19, Face Diameter 3.07, Grad .001 x 4 Travel

Original price was: $253.40.Current price is: $126.70.

SKU: TEEfOEPNfP0yn Category:

Description

A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications in a vertical orientation. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the bi-directional scale aids measurement in both directions.

Specification

Digital/Analog: Analog

Inch-Metric: Inch

Delivered: With certificate of inspection, bezel clamp, limit hands

Range: 4

Range
per rev.:
0,1″

Graduation: 0,001″

Accuracy: 0,002″

H MPE (Hysteresis): 0,00033″

R MPE (Repeatability): 0,0002″

Error of indication one revolution: 0,002″

MPE first one revolution: 0,001″

MPE first 2 1/2 revolutions: 0,001″

MPE > 2 1/2-10 revolutions: 0,002″

Type: ANSI/AGD Standard

Mass: 366 g

Stem: 9.52 mm / 0.375″

Contact point: Carbide tipped, thread: 4-48UNF

Continuous dial: Yes

Coaxial revolution counter: Yes

Shockproof: Yes
