2960A Mitutoyo Series 2 Back-Plunger Dial Indicator: 0-1mm
The Mitutoyo 2960A Series 2 Back-Plunger Dial Indicator has the following specifications:
- Measuring Range: 0-1mm
- Graduations: .01mm
- Accuracy: +/-.014mm
- Range/Rev: 1.27mm
- Dial Reading: 50-0-50
- Measuring Force: 0.4 1.4N
- One Revolution Type: Yes
- Shockproof: Yes

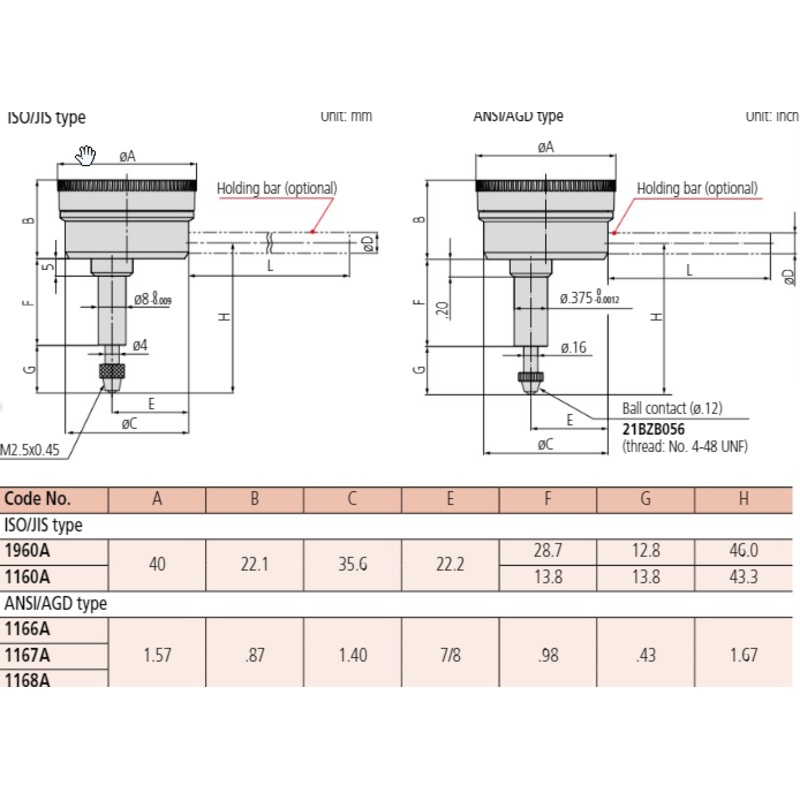

- ISO/JIS Type: 8mm Stem with M2.5 x 0.45 Thread
The Mitutoyo back plunger dial indicator is designed with the measuring spindles on the back of the indicator. This type of indicator offers the same precision and durability as other Mitutoyo dial indicators, but is ideal for use in small spaces where graduations of standard dial indicators are difficult to see. The 2960A back plunger style makes this type of indicator suitable for mounting on leveling machine tool tables or inspection jigs. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.
