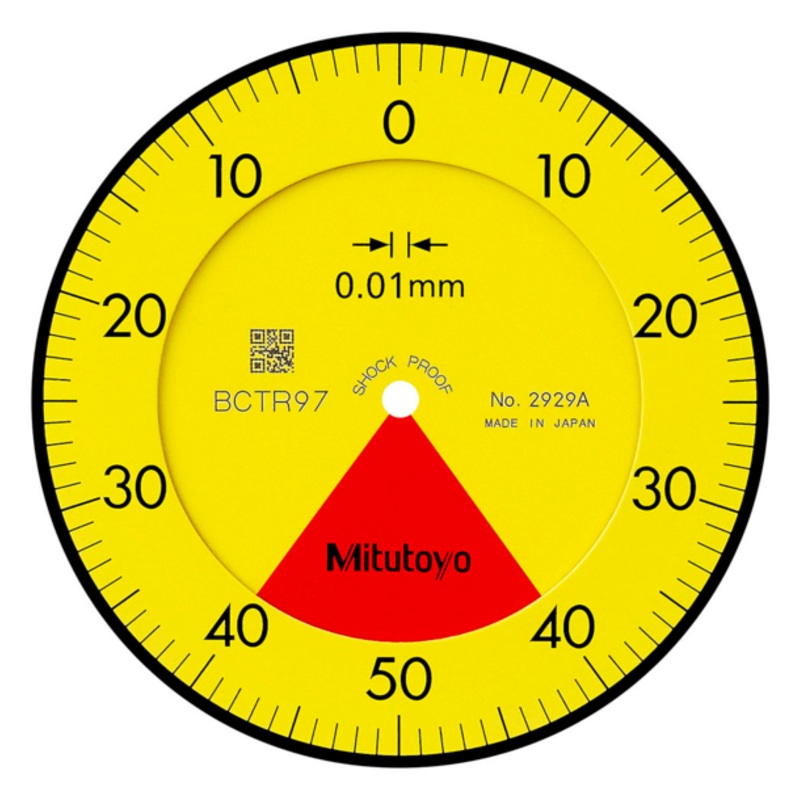

Dial Gauge, Flat Back, ISO Type One Revolution, Shockproof, 0,8mm, 0,01mm 2929AB

Original price was: $65.88.Current price is: $32.94.

SKU: TEEbiOxgeb4km Category:

Description

This is a one revolution dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Specification

Digital/Analog: Analog

Inch-Metric: Metric

Functions: ISO type

Delivered: With certificate of inspection

Range: 0.8 mm

Plunger Stroke: 5 mm

Range
per rev.:
1 mm

Dial reading: 40-0-40

Graduation: 0.01 mm

Measuring force: 0.4-1.4 N

MPE any 1/10
revolution:
5 m

MPE measuring range: 7 m

H MPE
(Hysteresis):
3 m

R MPE
(Repeatability):
3 m

Mass: 145 g

Stem: 8 mm

Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm

One revolution: Yes

Shockproof: Yes
