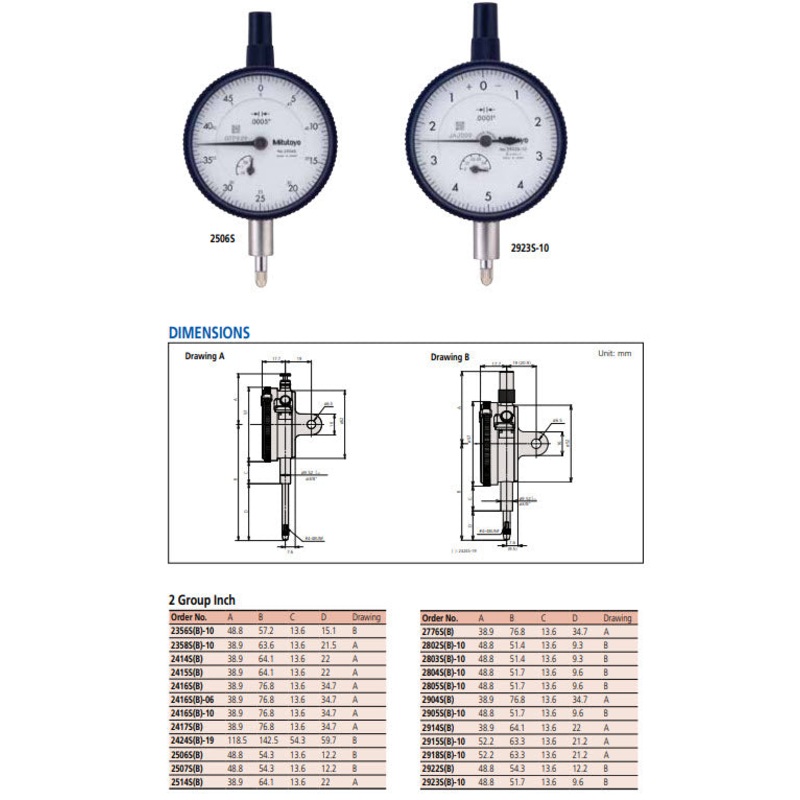

Dial Gauge, Flat Back, ANSI/AGD Type 1, 0,001 2416AB-06

Original price was: $69.23.Current price is: $34.62.

SKU: TEE9IJkK9H9pq Category:

Description

This is a standard, inch dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Features

Digital/Analog: Analog

Inch-Metric: Inch

Delivered: With certificate of inspection, bezel clamp

Range: 1

Range
per rev.:
0,1″

Dial reading: 0-100

Graduation: 0,001″

H MPE (Hysteresis): 0,0002″

R MPE (Repeatability): 0,0002″

MPE first one revolution: 0,001″

MPE first 2 1/2 revolutions: 0,001″

MPE > 2 1/2-10 revolutions: 0,002″

Type: ANSI/AGD Standard

Measuring force: 0,4-1,8 N

Mass: 139 g

Stem: 9.52 mm / 0.375″

Contact point: Carbide tipped, thread: 4-48UNF

Continuous dial: Yes
