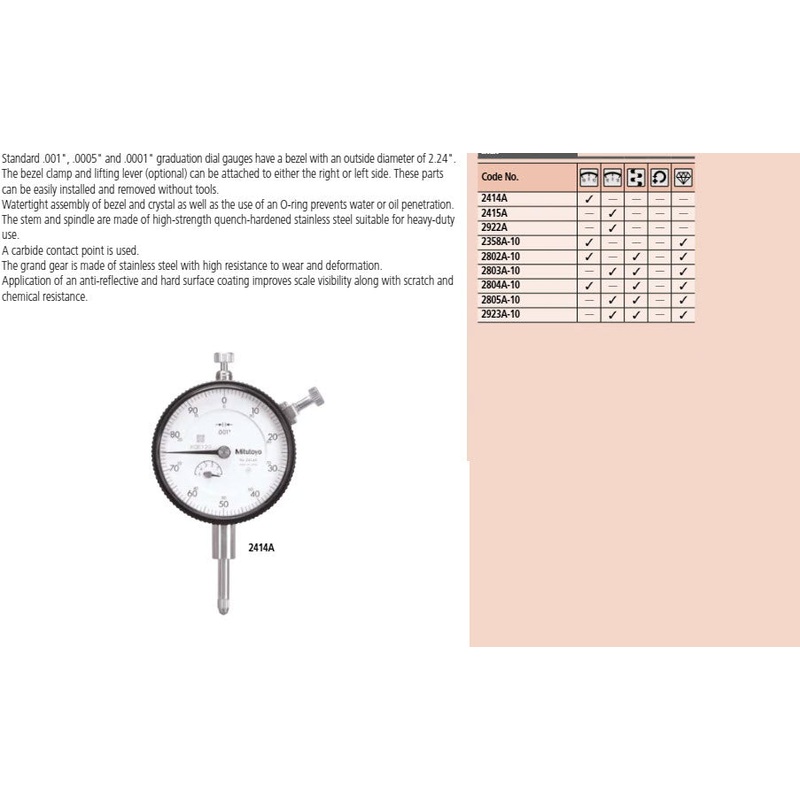

Dial Gauge, Flat Back, ANSI/AGD Type 0,5, 0,001 2414AB

Original price was: $58.45.Current price is: $29.23.

SKU: TEE2hWuvpMOv5 Category:

Description

Standard Type, 0,5″ / 0,125″ Range, 0,001″ / 0,005″ Graduation – Inch

This is a standard, inch dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Specification

Digital/Analog: Analog

Inch-Metric: Inch

Delivered: With certificate of inspection, bezel clamp

Range: 0,5

Range
per rev.:
0,1″

Graduation: 0,001″

H MPE (Hysteresis): 0,0002″

R MPE (Repeatability): 0,0002″

MPE first one revolution: 0,001″

MPE first 2 1/2 revolutions: 0,001″

MPE > 2 1/2-10 revolutions: 0,001″

Type: ANSI/AGD Standard

Measuring force: 0,4-1,8 N

Mass: 164 g

Stem: 9.52 mm / 0.375″

Contact point: Carbide tipped, thread: 4-48UNF

Continuous dial: Yes

Dimensions
