Description
Please notice on the attached drawing that this box tapers as it goes up. You will need to make sure that the narrowest point will fit your installation.
Please call us if you have questions regarding options (insulated/heated, insulated, non insulated).
This would ship direct from Dekorra to you.
SHIPPING IS FOR CONTIGUOUS UNITED STATES ONLY! HAWAII AND ALASKA WOULD BE AN ADDITIONAL SHIPPING COST.

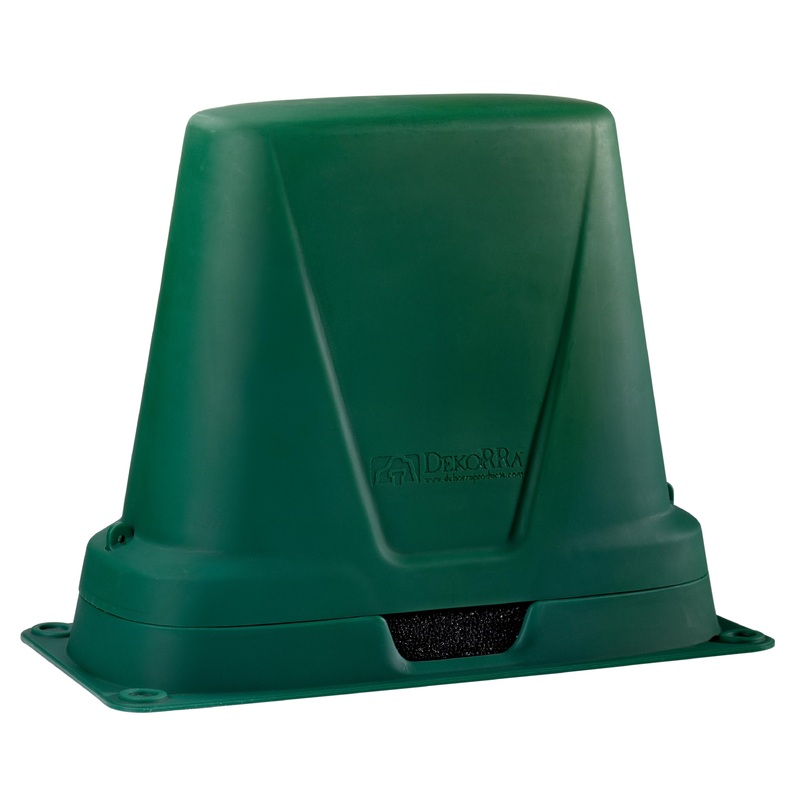

Model 302 Dimension 48″L x 17″W x 27.5″H (see spec sheet in the pictures)
- ASSE approval
- Two-piece lift off design
- Available in brown granite or green turf
- Durable polyethylene construction
- Built in double locking hasp
- Can be ordered just as a cover (no insulation), with insulation (pouch), insulated and heated.
Comes in two different colors Brown Granite (BG) or Green Granite (GT)
CLASS I (C1) – Freeze protection. Dekorra Enclosures Class I shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40F. This is the cover, the insulation bag and the heat cable
CLASS II (C2) Freeze retardant. Dekorra Enclosures Class II shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33F. If you are going to be colder than 33F then you will want to get the Class 1 that has the cover, the insulation bag and the heat cable.
CLASS III (C3) Non-freeze protection. Dekorra Enclosures Class III are designed and constructed to provide system security for components when freezing temperatures are not a consideration. This is just the cover. No insulation bag! No heat cable!
