Essential to every table saw owner is an accurate miter gauge. Unfortunately, most stock miter gauges are either too sloppy or so poorly made that repeatable cuts are next to impossible.
With those failings in mind, our engineers designed the COMPASS MG-36Pro Miter Gauge. The MG-36Pro is a tool you can trust and you will achieve your intended results which not only saves precious time, but saves you money by eliminating mistakes. And perhaps most important, the MG-36Pro is simply fun to use!
Features and Benefits:
* 11 Positive Stops and Smart Trigger Lock
* 22” Extended Miter Bar with Newly Designed Fitness Adjustment Mechanism
* New Vernier Scale Achieves Miter Angular Accuracy
* Micro-Adjustable Flip Stop with Unique Elbow Joint
* 36″ Crosscutting Fence
* Premium Materials and Craftsmanship
Unbeatable Miter Angular Accuracy
Unlike any other miter gauge on the market today, the Compass MG-36Pro Miter Gauge achieves precise angular settings by eliminating slop.

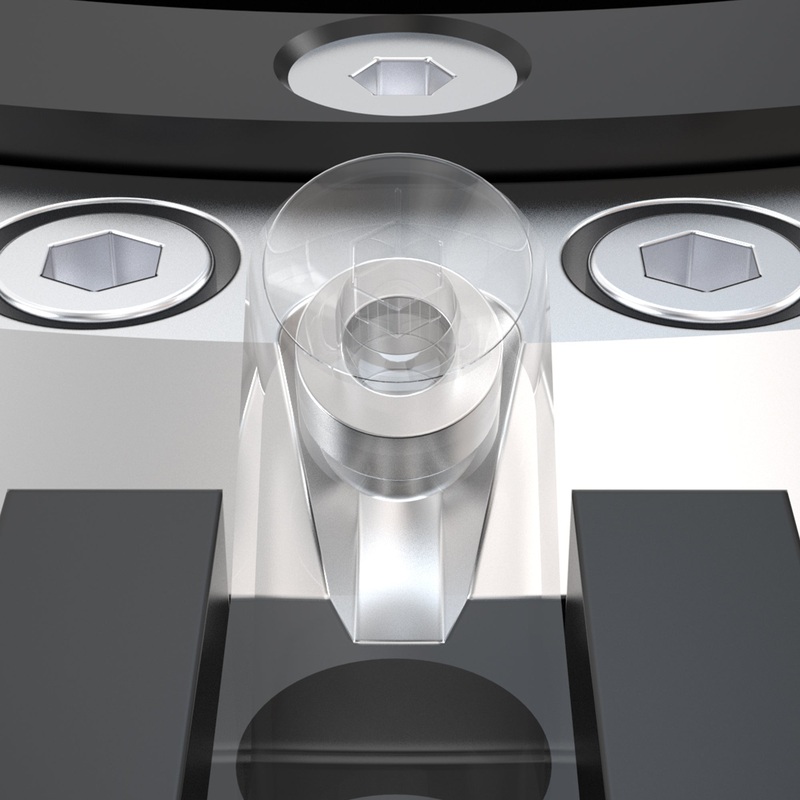

This is achieved with a positive index system consisting of tapered grooves and a spherical locking pin.
The heart of the Compass MG-36Pro Miter Gauge is our unique, positive lock index system. With the use of only two fingers, the tension that keeps the spherical locking pin in place is released allowing the miter gauge to pivot, and index, to all of the most common miter angles.
The Compass MG-36Pro allows for quick and positive adjustments with 0.02 (1/50th degree)! Of course, the MG-36Pro can be manually set to any other angle you desire.
The four eccentric blocks in the Miter Bar can be rotated to eliminate the lateral play with smooth sliding in the entire T-slot, which is the basis of precise angular settings.
Positive Stops and Smart Trigger Block
COMPASS MG-36Pro has11 Positive Stops: 60, 45, 30, 22.5, 15 and 0.
The Indexing Pin with the Smart Trigger Lock is released by pressing the side buttons with two fingers. It is fast, accurate and easy!
36Crosscutting Fence
The standard heavy-duty, black anodized crosscutting fence of the MG-36Pro is a CNC milled extrusion of 6061-T6 aluminum. It is the base for the micro-adjustable flip stop.
The whole fence can be moved smoothly and easily by loosening the two knobs.
It can be extended to 36in length, which is the longest lengthcapacity in the market.
A precision scale is equipped on the top of the fence. The fence face is ready to take your Sub Fences by two T-slots.
Micro-Adjustable Flip Stop with Unique Elbow Joint
The MG-36Pro Flip Stop Assembly slides in a groove on top of the fence and can be locked anywhere you choose.
The Flip Stop can be easily flipped up when not in use.
For stock without square faces to the table, you can index on the bevel utilizing the Stop Pin.
Once locked in place, you can make micro adjustments in 0.001 (0.02mm)increments. All graduations are laser etched.
Premium Materials and Craftsmanship
The Compass MG-36Pro is designed with longevity in mind. All parts are CNC machined, all aluminum parts are anodized and the remaining components are either made from stainless steel or brass.
The combination of accurately milled components, proper materials and finish insures that the MG-36Pro will remain rust free.
The added rigidity and extraordinary locking strength will provide years of accurate results.
