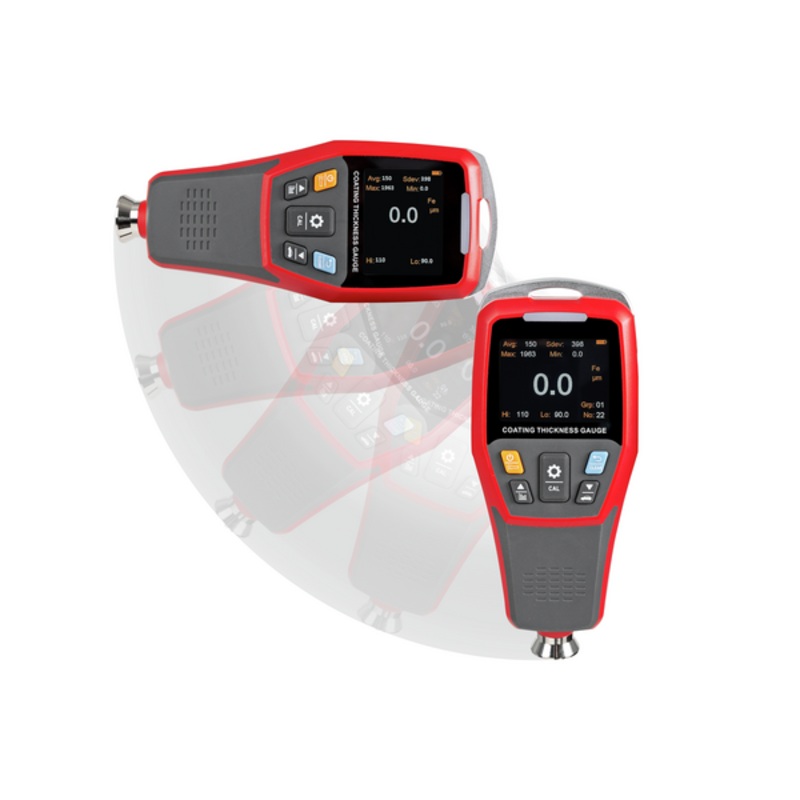

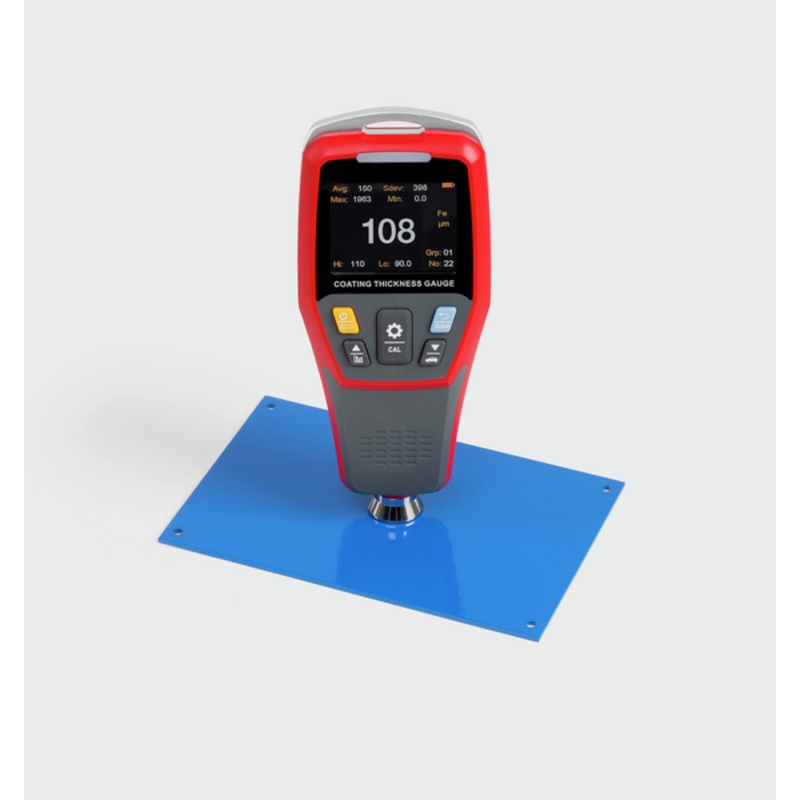

Coating thickness gauge – FE/NFE intern JCT 100 Measuring range coating thickness [d] (m) 2000 m

Description

• Accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
• Combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
• Stable, reliable performance as well as non-destructive measuring
• Measuring range up to 2000 m
• Low-wear sensor thanks to state-of-the-art technologies
• Single and two-point calibration
• Single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)
• The display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
• Selection of functions with automotive mode, voice transmission, Bluetooth App (for Android, no iOS support) and LED torch
• Main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection
• Delivery in a practical box

Measuring range coating thickness [d] (m) 2000 m Readability coating thickness [d] (m) 0,1 m Tolerance (% of [Max]) 2% Units m, inch (mil) Coating thickness gauge sensor type FE, NFE Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N Memory function Statistic function Continuous capture possible Material housing plastic Dimensions completely mounted (WDH) 1526535 mm Interfaces Bluetooth, USB 2.0 Sensor placement position internal GTIN/EAN number 4045761367760
