Description
|
|

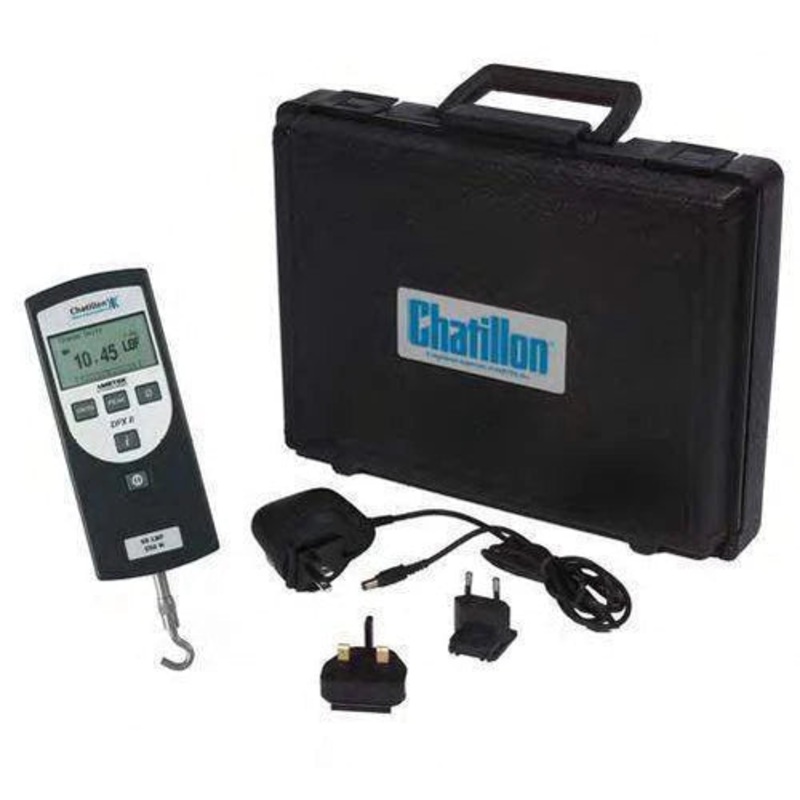

The CHATILLON DFX-II Series is an economical digital force gauge ideal for applications where users are interested in basic peak force measurement. The DFX is available in four capacities (10lbf, 50 lbf, 100 lbf, 200 lbf).
Specifications
| Accuracy |
0.3% of Full Scale |
| Data Outputs |
– |
| Sampling Rate |
1,000 Hz |
| Power |
Reachargeable NimH Battery Pack, Universal Charger |
| Data Storage |
– |
| Calibration |
Certificate of Conformance included, NIST & ISO are Optional |
| Warranty |
1 Year |
| Capacities |
10 lbf, 50 lbf, 100 lbf, 200 lbf |
| Measuring Units |
lbF, ozF, gF, kgF, N (Depends on model) |
| Safe Overload |
150% of Full Scale |
Capacity x Resolution
| Model |
lbF |
ozF |
gF |
kgF |
N |
| DFX2-010 |
10 x 0.01 |
160 x 0.2 |
5000 x 5 |
5 x 0.005 |
50 x 0.05 |
| DFX2-050 |
50 x 0.05 |
800 x 1 |
25000 x 20 |
25 x 0.02 |
250 x 0.2 |
| DFX2-100 |
100 x 0.1 |
1600 x 2 |
50000 x 50 |
50 x 0.05 |
500 x 0.5 |
| DFX2-200 |
200 x 0.2 |
– |
– |
100 x 0.1 |
1000 x 1 |
