Description

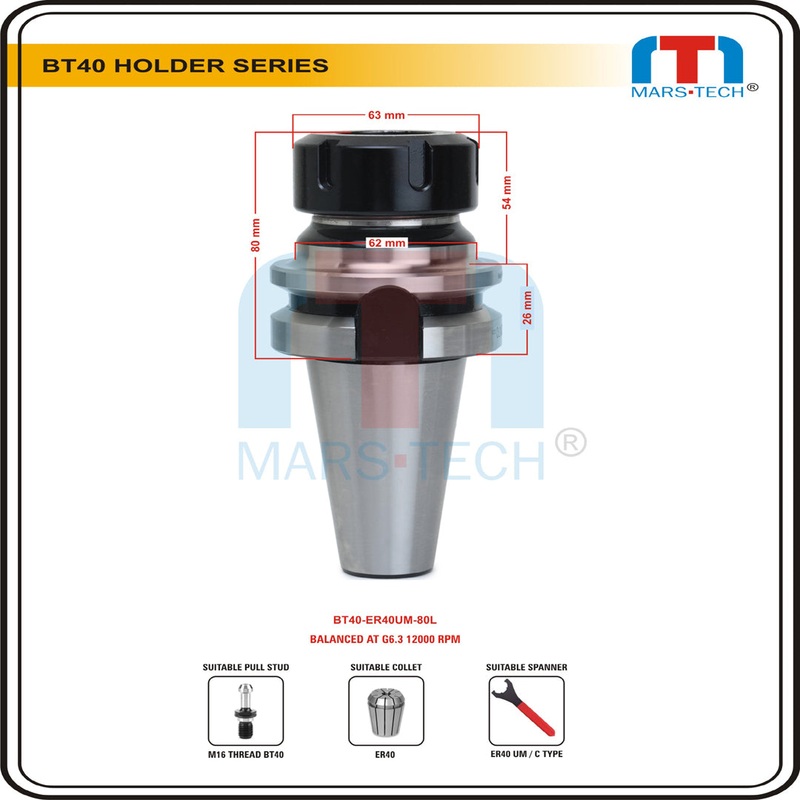

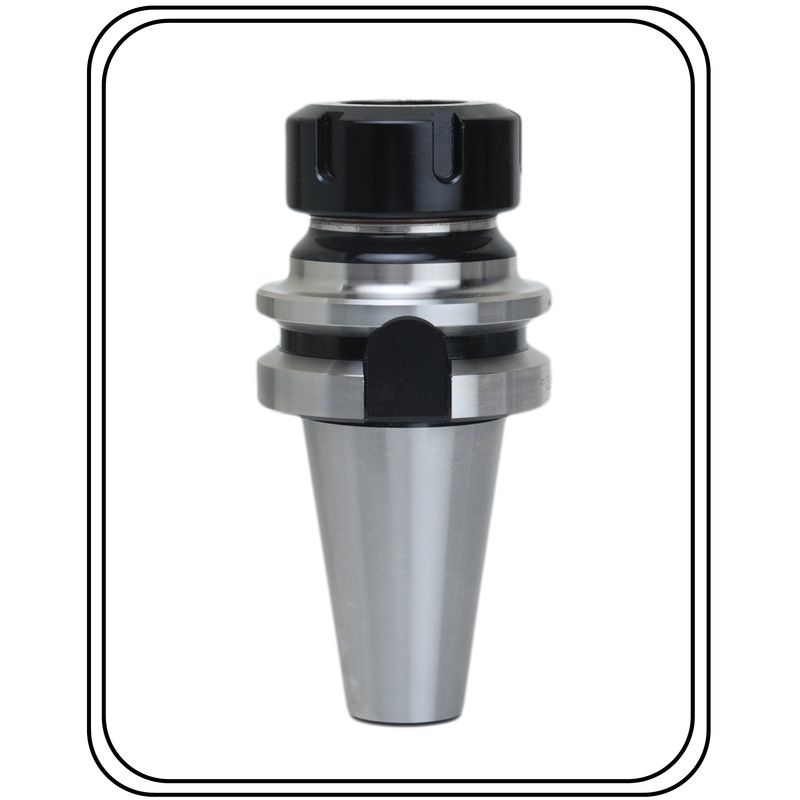

BT40 Tool Holder accepts all ER40 collets
ER40 Collets range from 3 mm to 26 mm
Thread inside internal stop screw
Made from alloy steel hardened to 54 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground
Coolant through capability
Gage length is 70mm,100MM,150MM,200MM
Rear thread for pull stud is M16 X 2.0
All holders have capability to become through coolant by simply removing screw in the center by allen key
