Description
USE THE TECHNICAL LITERATURE BELOW TO DETERMINE THE SPECIFICATIONS YOU REQUIRE.
OPCO SPRING AUTOMATICALLY CHOSEN WHEN MAIN SPRING IS CHOSEN.
High Quantities and less-common products may take an additional 10 days for shipment. Contact us via phone or Email to request more information on availability.
FOR AVAILABILITY OF MORE OPTIONS, PLEASE CONTACTUS FOR INFORMATION
*CSA 6.18 Service Regulator and CSA 6.22 Line Pressure Regulator Approved

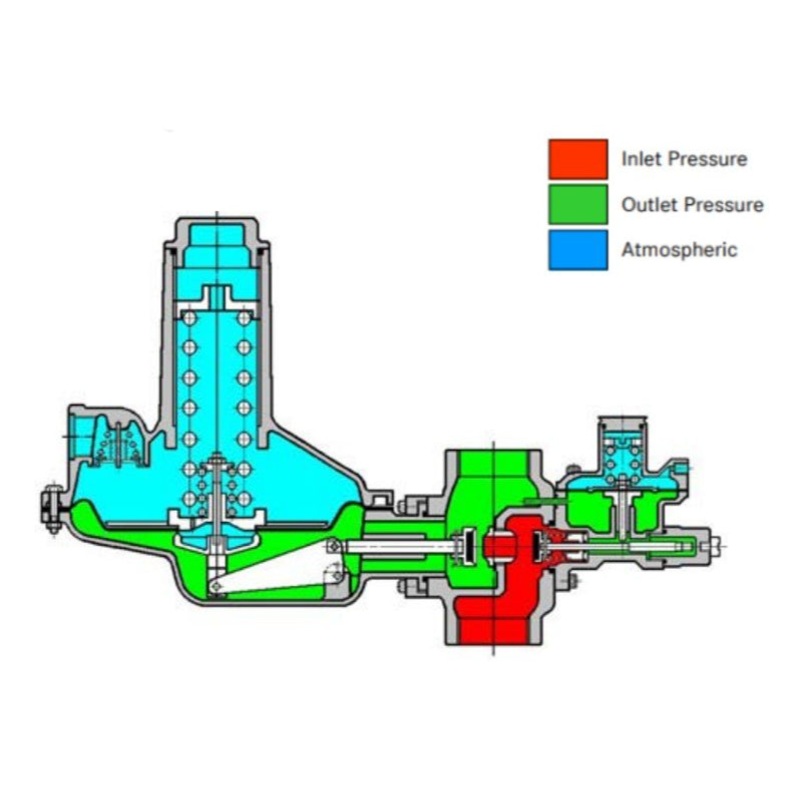

LIMITED INTERNAL RELIEF CAPACITY WITH INTERGRAL OVER PRESSURE CUT-OFF SAFETY SLAM-SHUT VALVE
Designed for accurate pressure reductions and has internal relief valve. Used for commercial and industrial applications and can be installed indoors or outdoors.
- Minimum Inlet Pressure: 1 PSI
- Maximum Inlet Pressure: 10 PSI
- Outlet Pressure Range: 6″WC – 2 PSI
- Size Range: 1-1/4″ – 2″ NPT, 2″ Flanged
- Gases: Natural, Propane etc..
Parts / Accessories:
- Bryan Donkin RMG 274 R/LR/SD Regulator Springs
- Bryan Donkin RMG 274 R/LR/SD Regulator Orifices
- Orifice Removal Tool for Bryan Donkin RMG 274 Gas Pressure Regulators
- GV Gas Relief Vent
Resources:
- 274 Technical Literature
- Installation & Commissioning Instructions SSV
- Installation & Commissioning Instructions OPCO
- Model OPCO-290 Safety Slam-Shut Literature
- 240, 241, 260 & 274, OPCO 290 & 309 CSA Certificate of Conformance
