Description
-

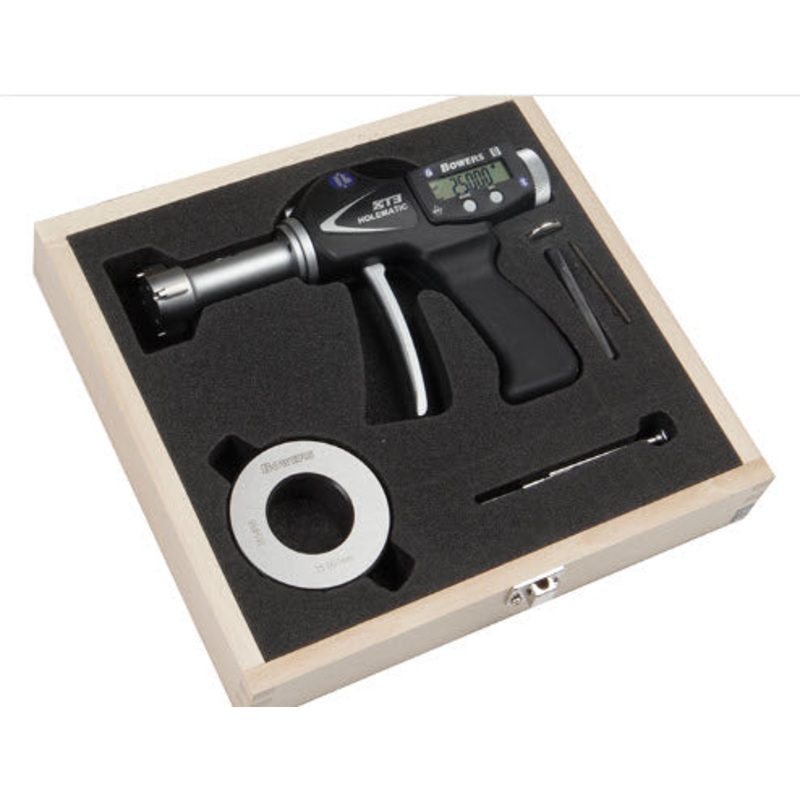

Bowers Holematic Pistol Grip range of bore gauges offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliminate operator feel.
To reduce hand fatigue, the travel of the trigger is adjustable for minimum over-travel.
Larger easy-to-read swivel display
Self centering heads
Four preset memories
Fixed anvils
Resolution: .00005 /.001mm
Range .08012 (2300mm)
Tungsten carbide measuring faces on all 3-point heads from .5 (12.5mm) and up.
Heads with special anvils available for threads, splines, slots, etc.
Sizes over .500 (12.5mm) feature blind bore capability
Setting rings included in all sets
