Description
Bowers Wyler Levels
Execution:
– Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
– Options:
– Measuring base with flat contact faces
– Measuring base with magnetic inserts
– Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
– Excellent view on the vial from above and from the side
– The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
– Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
– The prismatic bases are suitable for shaft diameters

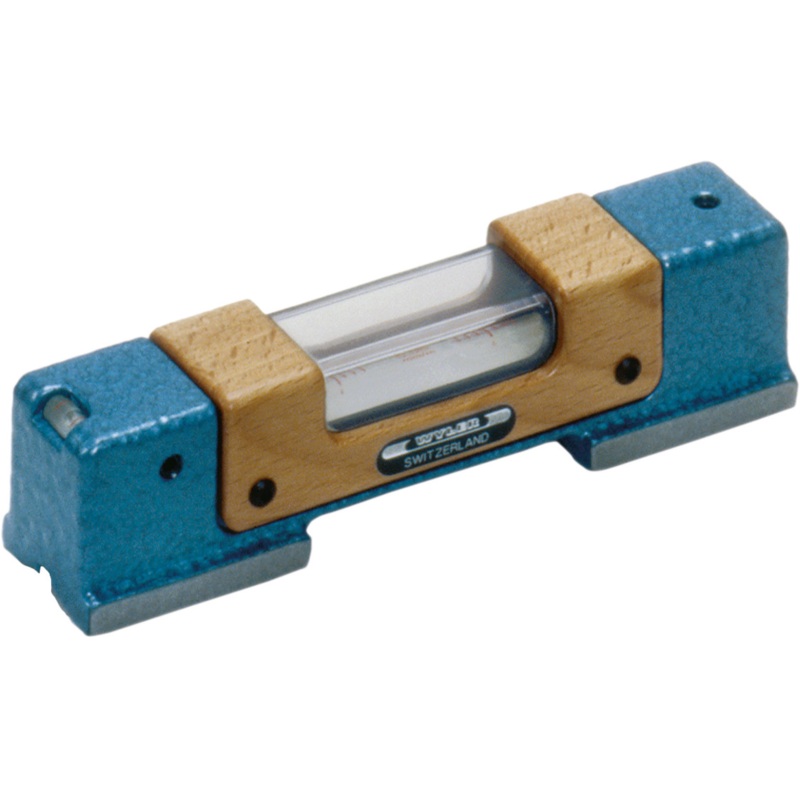

Wyler 155S250-113-050
Wyler Precision Engineers Level Dimensions : 250 x 45 x H:46mm
Accuracy Inch : .0005″/10″
Accuracy metric : .05mm/m
Angular : 10 seconds,
Bowers code 60-6268
