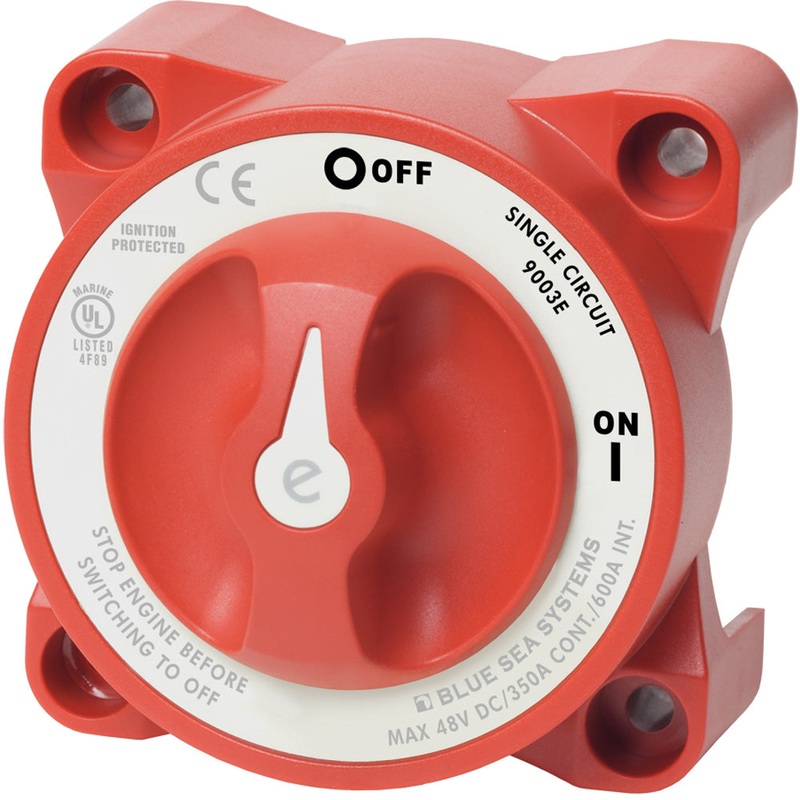

Blue Sea 9003e e-Series Battery Switch Single Circuit ON/OFF [9003E]

Description

9003e e-Series Battery Switch Single Circuit ON/OFF

Features:

• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 1
• AFD: No
• Lockable: No
• Box Dimensions: 3″H x 7″W x 9″L WT: 1 lbs
• UPC: 632085900359

Owner’s Manual (pdf)
Brochure (pdf)
