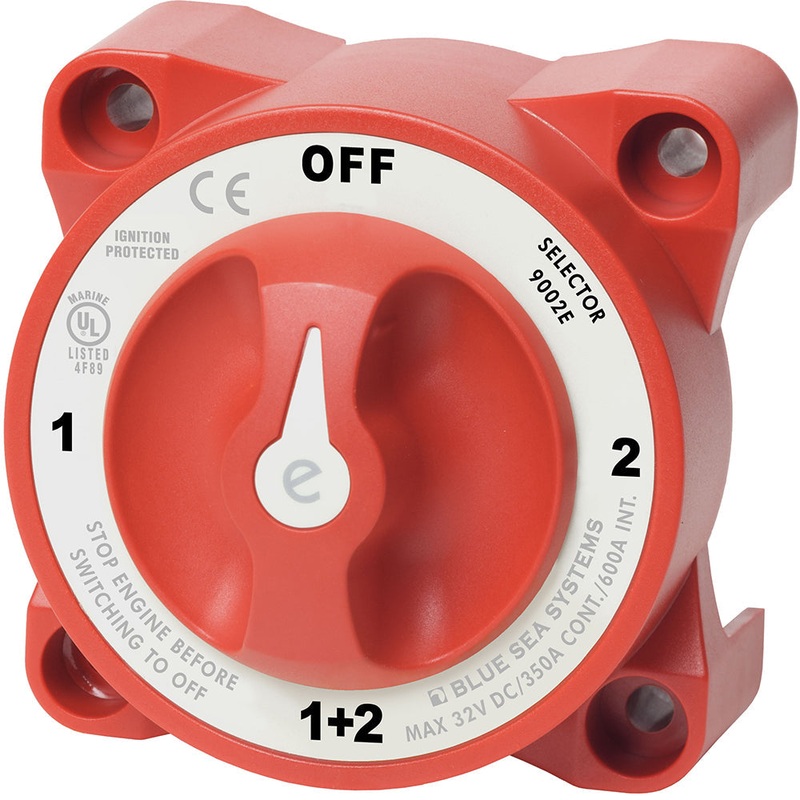

Blue Sea 9002e e-Series Battery Switch Selector w/Alternator Field Disconnect [9002E]

Description

9002e e-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protectedsafe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Includes:

• AFD (Alternator Field Disconnect)
• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 2
• AFD: Yes
• Lockable: No
• Box Dimensions: 3″H x 7″W x 9″L WT: 1.2 lbs
• UPC: 632085900250

Owner’s Manual (pdf)
Brochure (pdf)
