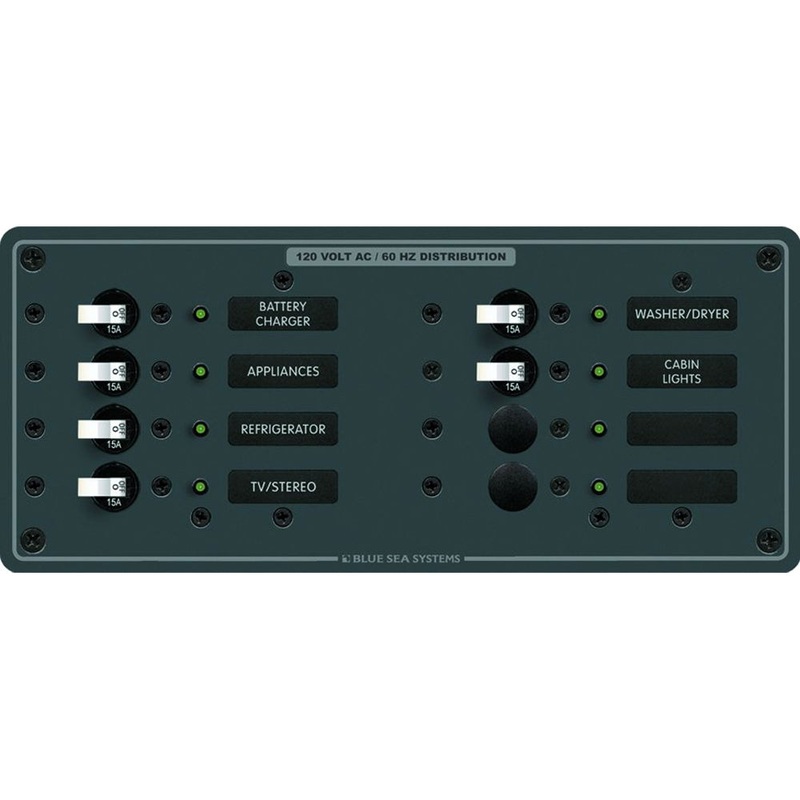

Blue Sea 8411 AC 8 Position [8411]

Description

AC 8 Position

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• Maximum panel amperage – 100 Amperes
• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 4″H x 9″W x 12″L WT: 2.85 lbs
• UPC: 632085084110

Quick Guide (pdf)
Owner’s Manual (pdf)
