Blue Sea 8079 AC Main Only Circuit Breaker Panel – White Switches [8079]

Description

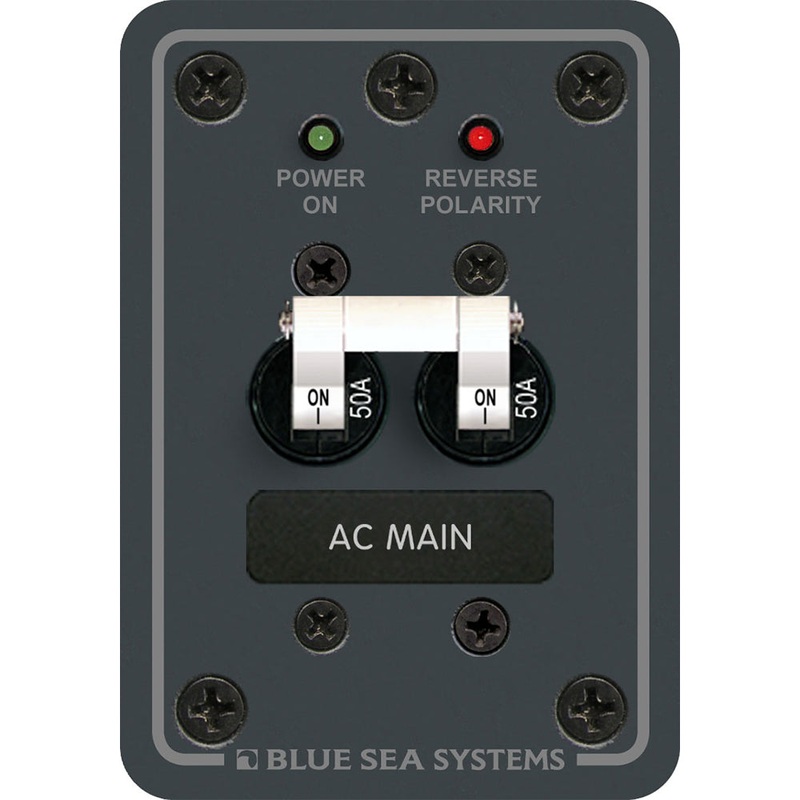

8079 AC Main Only Circuit Breaker Panel – White Switches

Features:

• Red reverse polarity indicating LED
• Safety ground screw on panel back
• Combines switching and circuit protection into a single device
• “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

• Nominal Voltage: 120v AC
• Maximum Voltage: 277v AC / 65v DC
• Height: 2.63″
• Width: 3.75″
• Weight: 0.51 lbs

Includes

• (1) 8034 LED – 120v AC Green
• (1) 8066 LED – 120v AV Red
• (1) 7242 A-Series White Toggle Circuit Breaker – Double Pole 50A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 1
• Voltage: 120v
• Box Dimensions: 3″H x 4″W x 7″L WT: 0.5 lbs
• UPC: 632085080792

Owner’s Manual (pdf)
