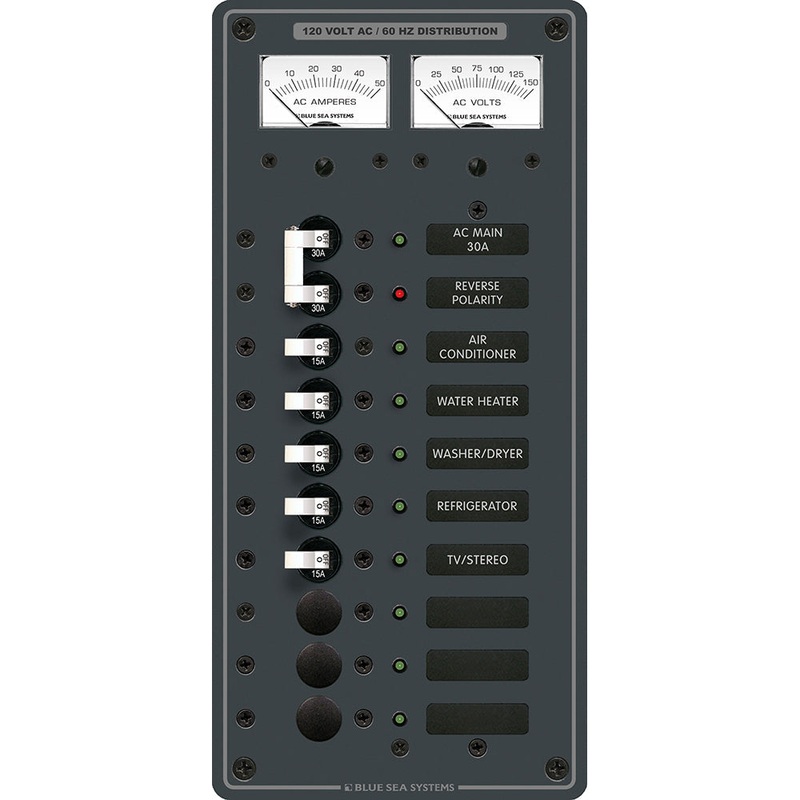

Blue Sea 8074 AC Main +8 Positions Toggle Circuit Breaker Panel – White Switches [8074]

Description

8074 AC Main +8 Positions Toggle Circuit Breaker Panel – White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• 9353, 0-150 Volt AC Voltmeter
• 9630, 0-50 Amp AC Ammeter
• Maximum panel Amperage – 50 Amperes
• 1 30A Double Pole Circuit Breaker
• 5 15A Single Pole Circuit Breakers
• 120 Volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 8
• Voltage: 120v
• Box Dimensions: 5″H x 10″W x 13″L WT: 3.3 lbs
• UPC: 632085080747

Owner’s Manual (pdf)
