Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel – White Switches [8068]

Description

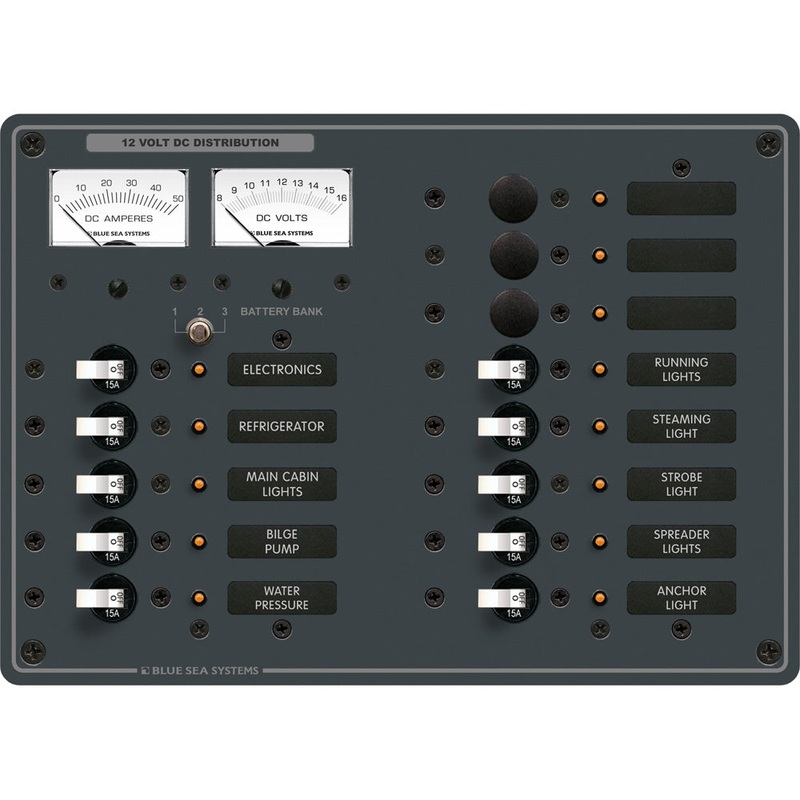

8068 DC 13 Position Toggle Branch Circuit Breaker Panel – White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• 10 15A Single Pole Circuit Breakers
• Toggle Branch Circuit Breaker Panel

Specifications:

• Positions: 13
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 7.5″
• Width: 10.5″
• Depth: 3″
• Weight: 4.2 lbs

Included:

• (10) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
• (1) 8030 Basic DC Panel Label Set – 30 Labels
• (1) 8028 DC Micro Voltmeter – 8 to 16v DC (Meter)
• (1) 8041 DC Micro Ammeter – 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 13
• Voltage: 12v
• Box Dimensions: 5″H x 10″W x 13″L WT: 4.2 lbs
• UPC: 632085080686

Quick Guide (pdf)
Owner’s Manual (pdf)
