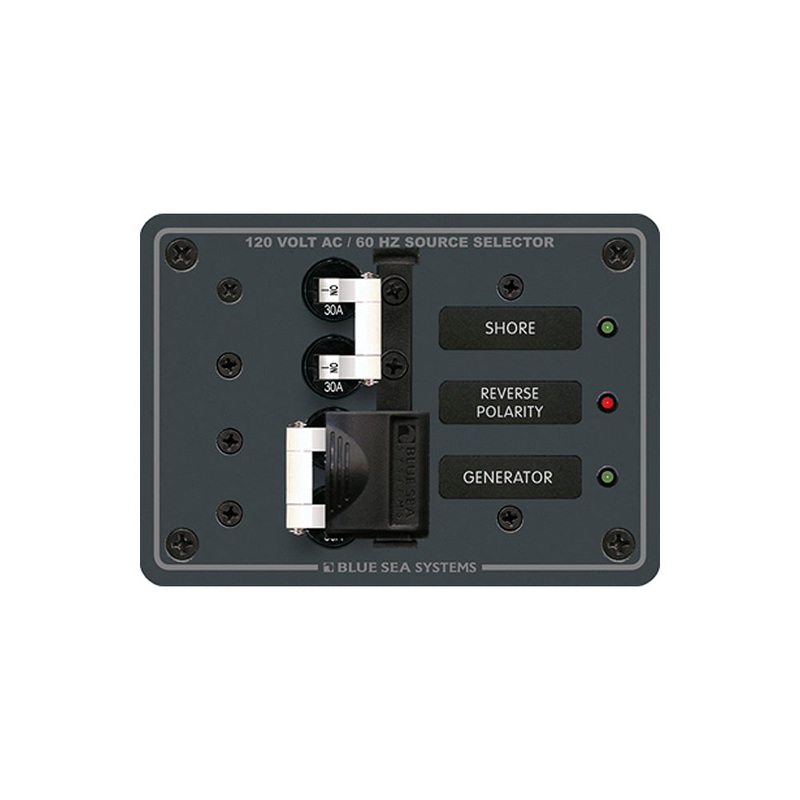

Blue Sea 8032 AC Toggle Source Selector 120V AC – 30AMP – White Switches [8032]

Description

8032 AC Toggle Source Selector 120V AC – 30AMP – White Switches

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Source Selection: 2
• Nominal Voltage: 120v AC
• Height: 3.75″
• Width: 5.25″

Included:

• (2) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A
• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (2) 8034 LED – 120v AC Green
• (1) 8066 LED – 120v AC Red

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 2
• AC/DC: AC
• Voltage: 120v
• Box Dimensions: 5″H x 7″W x 9″L WT: 1.4 lbs
• UPC: 632085080327
