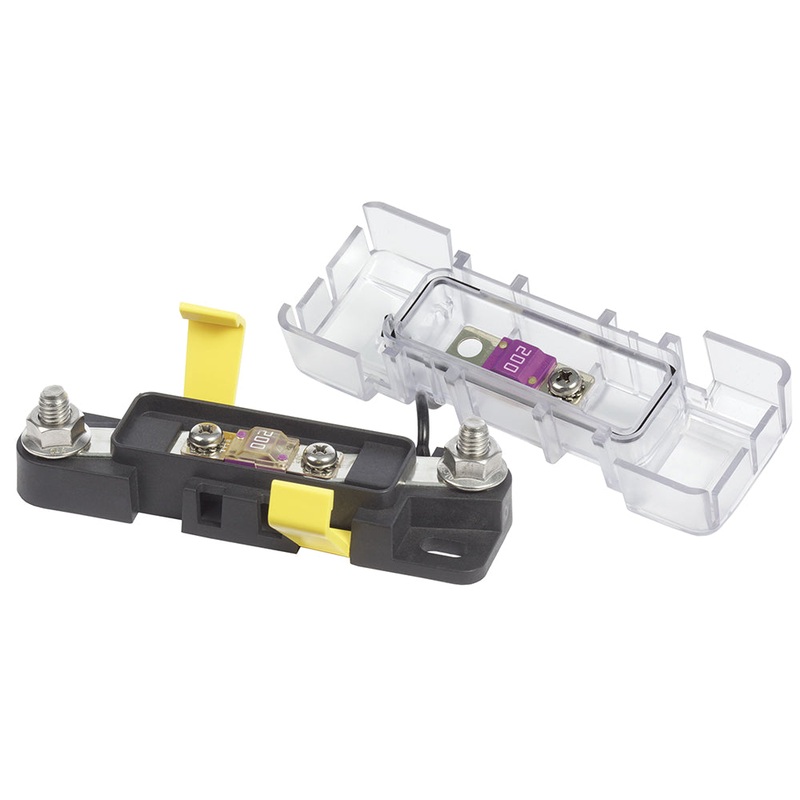

Blue Sea 7720 MIDI/AMI Safety Fuse Block [7720]

Description

MIDI or AMI Safety Fuse Block

• Ignition protected for installation aboard gasoline or diesel powered boats
• Sealed cover protects fuses from the harsh marine environment
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• 200A maximum with 2/0 cable
• Accepts Blue Sea Systems Square Format standard or custom label
• Fuses sold separately

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Fuse Type: MIDI/AMI
  • Type: Fuse Blocks
  • Box Dimensions: 2″H x 4″W x 8″L WT: 0.49 lbs
  • UPC: 632085077204

  Brochure (pdf)
