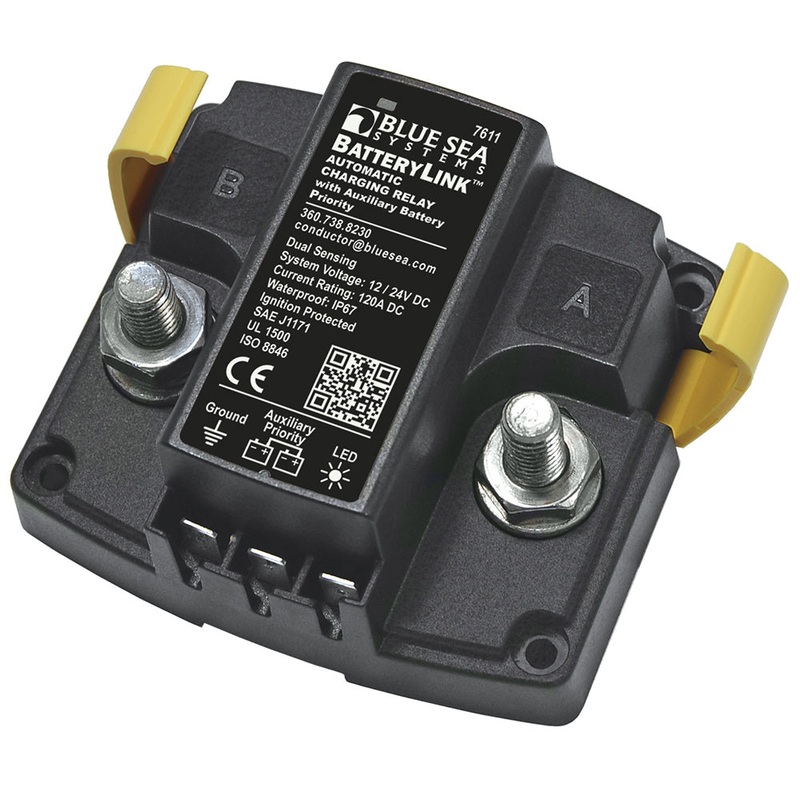

Blue Sea 7611 DC BatteryLink Automatic Charging Relay – 120 Amp w/Auxiliary Battery Charging [7611]

Description

7611 DC BatteryLink Automatic Charging Relay – 120 Amp w/Auxiliary Battery Charging

Features:

• 120 Amp continuous rating
• 12/24V DC auto ranging voltage input
• Senses charging on two battery banks
• Side and bottom knockouts for cable connections
• Clip-on cover insulates terminal connections
• 7/8″ (22 mm) stud length to accept multiple cable terminals
• Integrated LED indicates ACR status
• 1/4″ x .032″ male quick connect terminals for ground and optional features

Specifications:

• Intermittent Rating: 5 min.: 210 Amps
• Continuous Rating: 120 Amps
• Nominal Voltage: 12/24 Volts DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Continuous Amperage: 120a
• Box Dimensions: 4″H x 7″W x 9″L WT: 1.25 lbs
• UPC: 632085076115

Owner’s Manual (pdf)
